CREATING PEACE OF MIND

Managing people flow is a daily challenge. Every day, millions of people are passing through automated swing doors. Our mission is to offer the highest safety level while ensuring accessible and germ-free use for everyone.

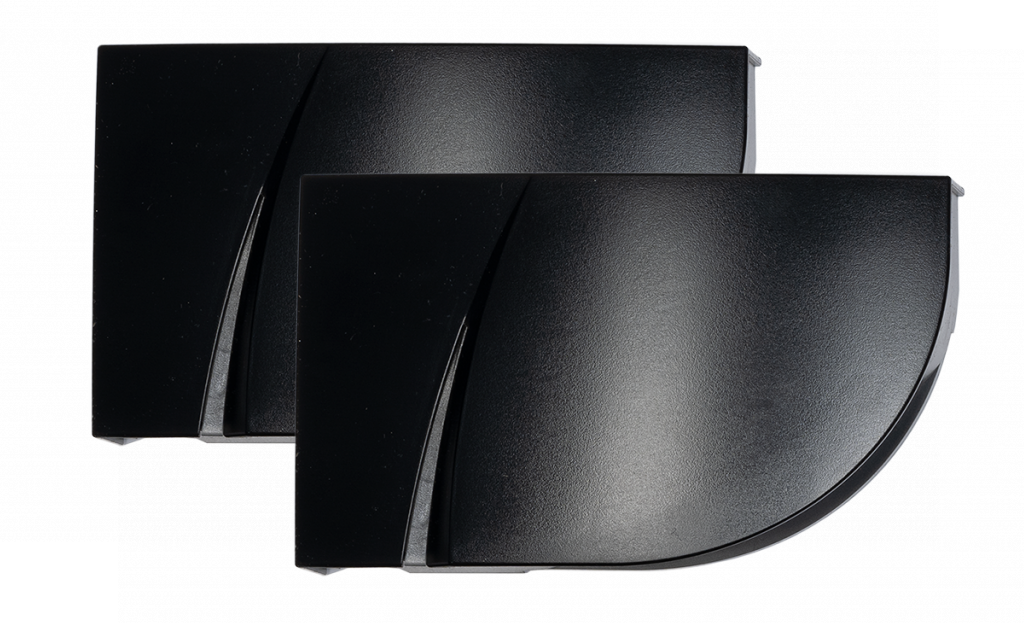

Four curtain stand-alone, door-mounted safety system

CHANGING THE RULES

The LZR-FLATSCAN 3D SW is a four-curtain, door-mounted safety system for automatic swing doors. Using LASER Time-of-Flight technology, its 3D detection field guarantees a full-safety coverage of the opening area. It offers the maximum coverage, avoiding unexpected movement of the door leaves.

ONE FOR ALL. ALL IN ONE.

Based on advanced LASER technology, the LZR-FLATSCAN 3D SW fits all automatic swing doors, no matter the type or environment. Reflective floors, guide rails or narrow corridors are all flawlessly managed by the sensor.

REDEFINING ACCESSIBILITY & SAFETY

The four laser curtains create a three-dimensional field in front of the door leaves. This 3D field changes the every-day life of many users, especially for the most vulnerable, like children or people with limited mobility.
3D FIELD COVERAGE
Thanks to four laser curtains, the pathway is fully covered. This high-definition field can detect people or objects instantly. Unnecessary movements of the door are reduced, minimizing mechanical wear and tear.
Completely Safe. Always.
The LZR-FLATSCAN 3D SW offers increased comfort. Users can pass through the door at their own pace without being surprised by sudden door movements.

REMOVING ALL RISKS

All the edges are safe. The LZR-FLATSCAN 3D SW anticipates people approaching the door at all angles.
Discover LZR-FLATSCAN 3D SW Cut Sheet
1

Leaf Zone Coverage

Four laser curtains fully cover the leaf zone. Any risk of contact with the door is prevented by detecting objects in the pathway and closing only when the door area is free of people or objects.
2

Pinch Zone Safety

Using Finger Detection Technology, the hinge-area is risk-free. These high-density curtains offer a precise detection for small objects in the hinge zone. It provides a hygienic solution by avoiding the installation of mechanical finger guards. No need for cleaning and bacteria-free.
3

Leading Edge Safety

While in motion, the detection zone extends beyond the leading edge of the door for enhanced safety.

COMPLETELY TOUCHLESS

A touchless opening is the perfect germ-free solution. Utilize Virtual Push Buttons in addition to a knowing act device. This way, the door can be activated by the wave of a hand or foot movement.
Additional Accessibility
Achieve an additional form of activation by programming up to two Virtual Push Buttons. You can place two Virtual Push Buttons up to 13 feet around the sensor. Not only does it offer multiple activation spots, but it also reduces the number of door accessories, streamlining installation.

HAND GESTURE SETUP

Launch the teach-in process. The size of the detection field is defined by a simple hand movement. The sensor will automatically launch an opening cycle to learn the environment.
Together FLATSCAN SW & FLATSCAN 3D SW
Intuitive Installation
A hand gesture simplifies the teach-in process.
Easy Retrofit
Sharing the same mounting base, retrofitting is made easy.
Perfect Match
The LZR-FLATSCAN safety sensors can be combined according to your swing door application.
Design Harmony
With an aesthetically pleasing design, the LZR-FLATSCAN sensors look good on all types of swing doors.
