ULTIMO

AUTOMATIC SLIDING DOOR SENSOR WITH EXTENDED / ENHANCED SAFETY
Technology Radar & Active Infrared
ULTIMO - Angled

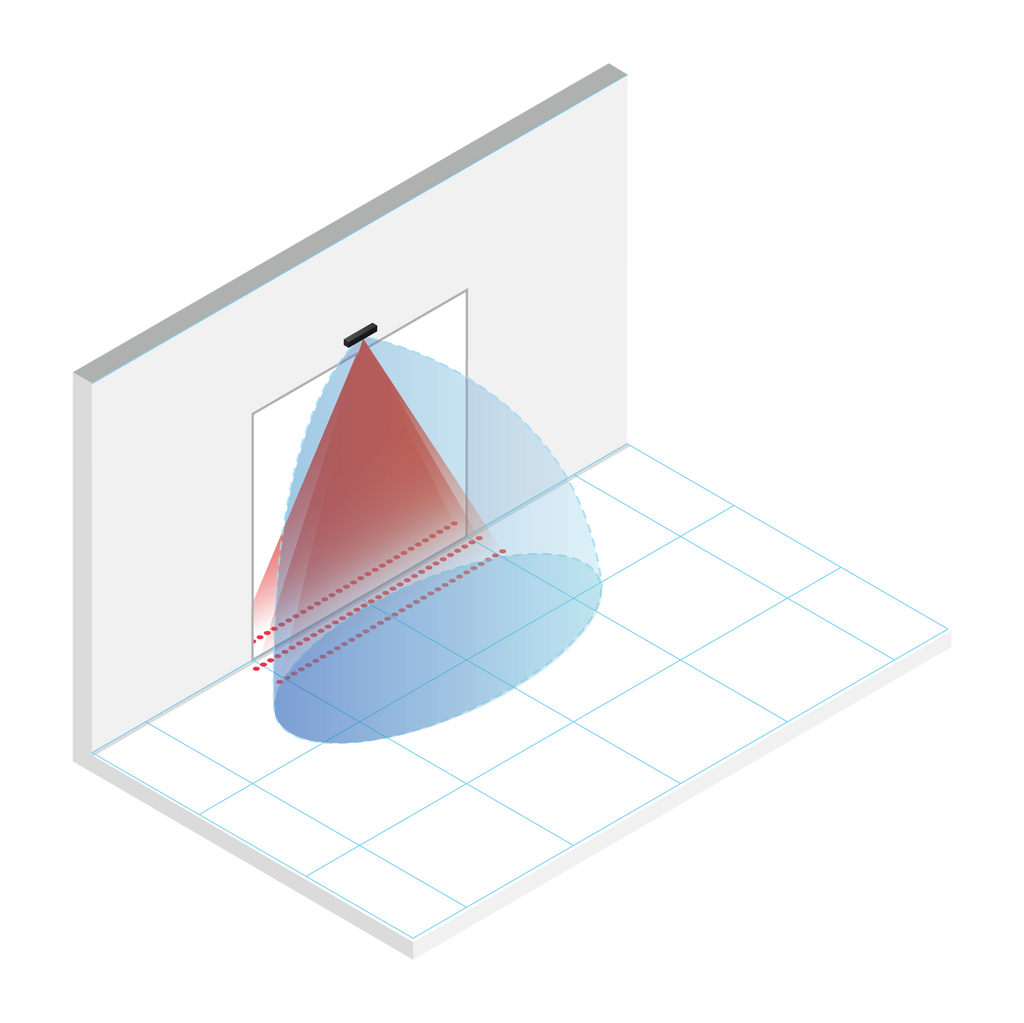

Description

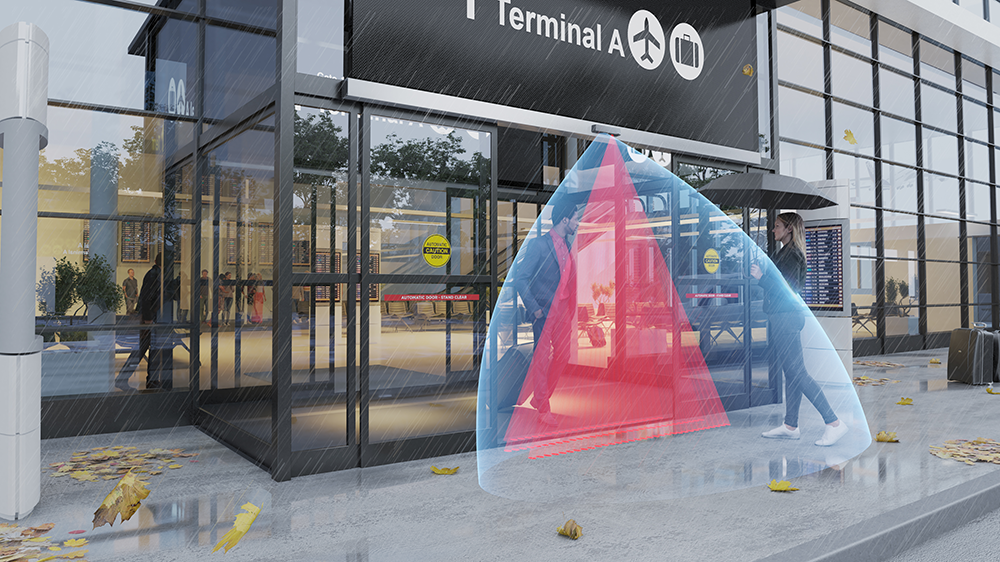

BEA's ULTIMOTM is a dual technology sensor with flexible safety features for automatic sliding doors. The microwave motion field activates as people or objects approach the door. Meanwhile, three adjustable infrared curtains, each with 32 spots of detection, ensure the safety of pedestrians passing through the door opening. ULTIMO offers advanced presence detection using ULTI-SHIELD technology, which provides uniform sensitivity across the safety curtains. ULTI-SHIELD technology allows for extended or enhanced infrared curtain positioning, ensures no loss of detection and immunities to environmental disturbances. The combination of flexible and precise detection fields complements the door's performance – making ULTIMO ideal for high-traffic environments in hospitals, hotels, airports or retail facilities.

Features

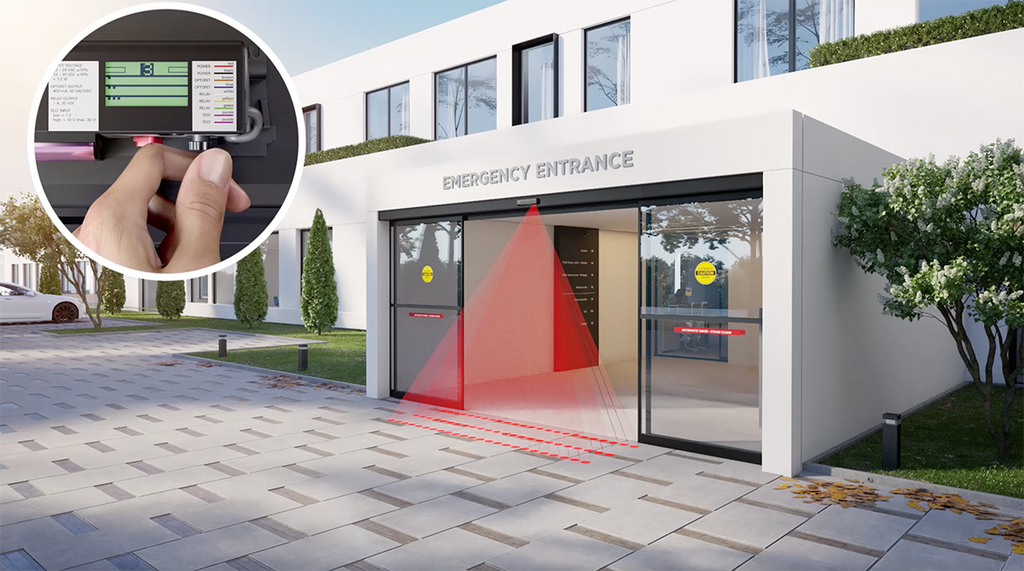

ULTIMO - Extended safety

Extended Safety

Three infrared curtains offer deeper & broader safety coverage in front of the door panels

Enhanced Safety

Positioning the inner infrared safety curtain through the threshold allows for sustained presence detection in the door opening

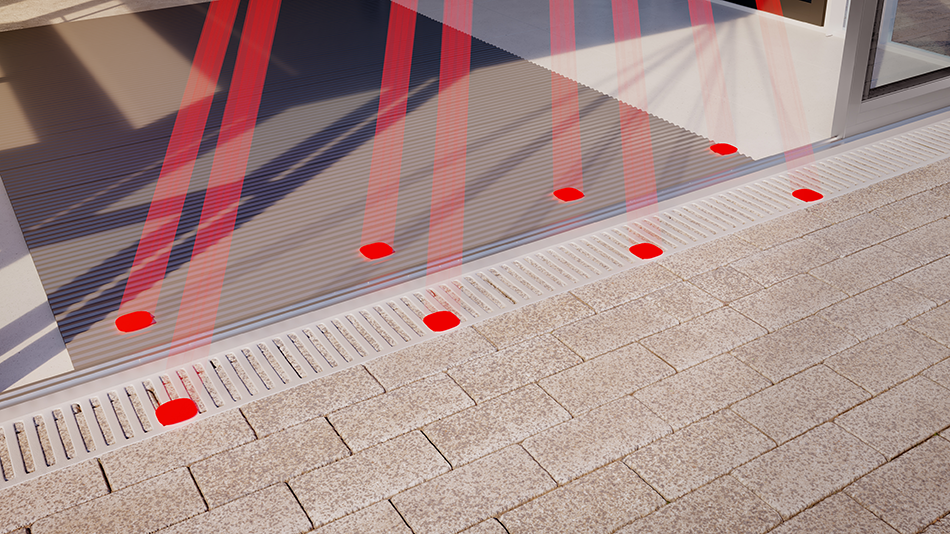

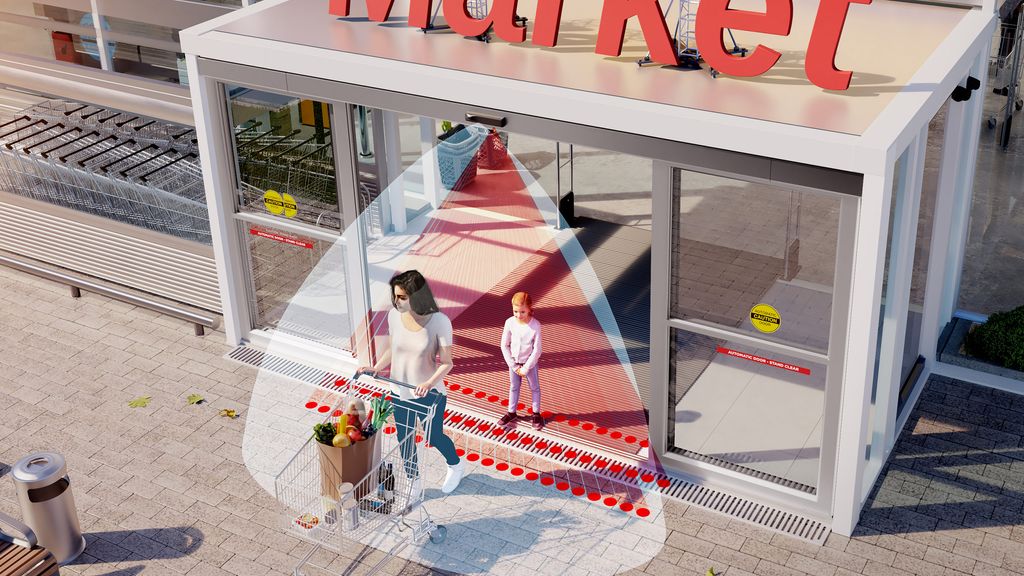

ULTIMO - VISIBLE ALIGNMENT SPOTS

Easy Installation

Eight visible red alignment spots are projected onto the ground, verifying the location of the infrared curtains and helping to increase the accuracy of setup

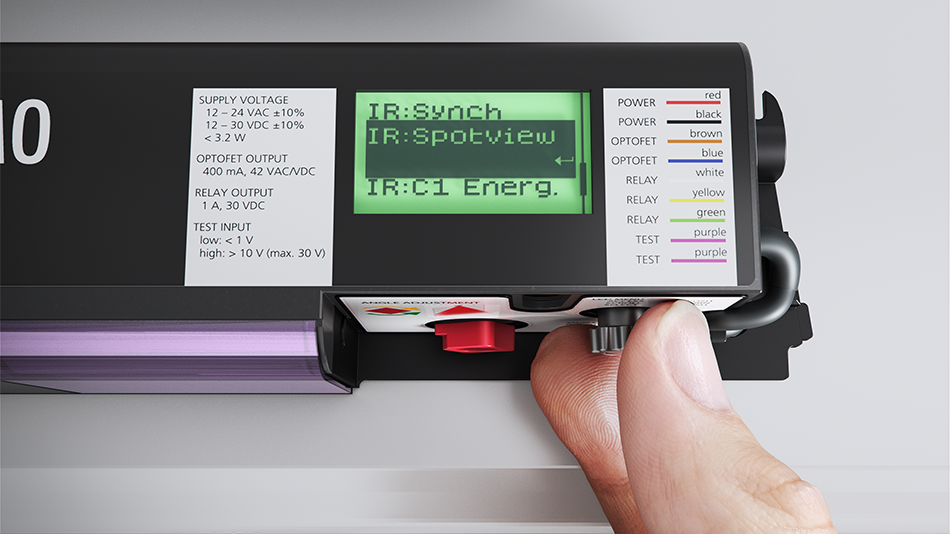

ULTIMO - REVIEW DIAGNOSTICS

Convenient Programming

Easily define the microwave pattern shape, adjust the infrared curtain width and review troubleshooting diagnostics via a menu-driven LCD

Table of specifications

Mounting Height

6'6" – 11'6"



Detection Mode

Motion and Presence



Technology

Microwave Doppler Radar and Active Infrared (AIR) with Background Analysis



Radar Detection Speed (min)

2 in / s



AIR Response Time (typ.)

< 200 ms (max. 500 ms)



Radar Transmitter
Frequency
Radiated Power
Power Density
Lobe Angles


24.150 GHz
< 20 dBM EIRP
< 5 mW / cm2
0 – 45º (typical adjustment), default 25º



AIR Spots
Size
Number of Spots
Number of Curtains
Curtain Angles


2” × 2” (typ.)
max. 32 per curtain
3
-3 – 11º, default 0º



Relay Output
Max. Contact Voltage
Max. Contact Current
Hold Time

Electro-mechanical-relay (potential and polarity free)
30 VDC
1 A
0.5 – 9 s



Optofet Output
Max. Contact Voltage
Max. Contact Current
Hold Time

Solid-state-relay (potential and polarity free)
42 VAC / VDC
400 mA
0.3 – 1 s



Test / Monitoring Input
Sensitivity
Response Time on Request


Low: < 1 V; High: > 10 V (max. 30 V)
Typical: < 5 ms



Supply Voltage

12 – 24 VAC ±10%
12 – 30 VDC ±10%



Power Consumption

< 3.2 W



Temperature Range*

-13 – 131 °F
0 – 95% relative humidity, non-condensing



Cable Length / Gauge

10’ / 26 AWG



Degree of Protection

IP54



Norm Conformity

R&TTE 1999 / 5 / EC; MD 2006 / 42 / EC;
LVD 2006 / 95 / EC; ROHS 2 2011 / 65 / EU



*LCD screen is operational from 14 – 131 °F. The sensor may still be programmed in colder
temperatures, but with the remote control.

Versions

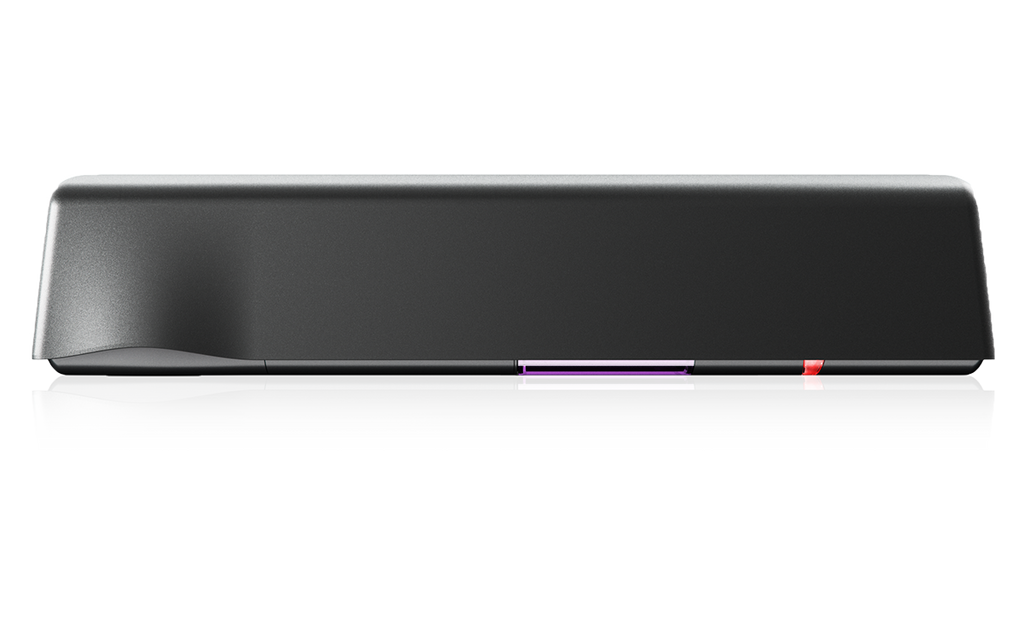

  • ULTIMO-front
