IS40P

PRESENCE SENSOR WITH VIRTUAL LOOP FUNCTIONALITY
is40p

Description

BEA’s IS40P is an infrared presence sensor designed for use in industrial applications. This sensor utilizes 40 active infrared spots for reliable presence detection.

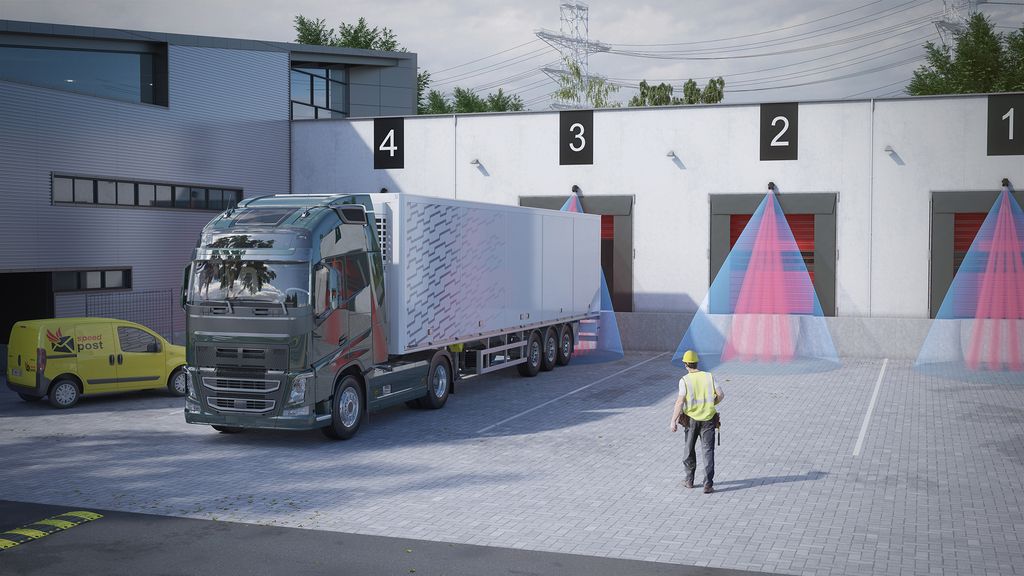

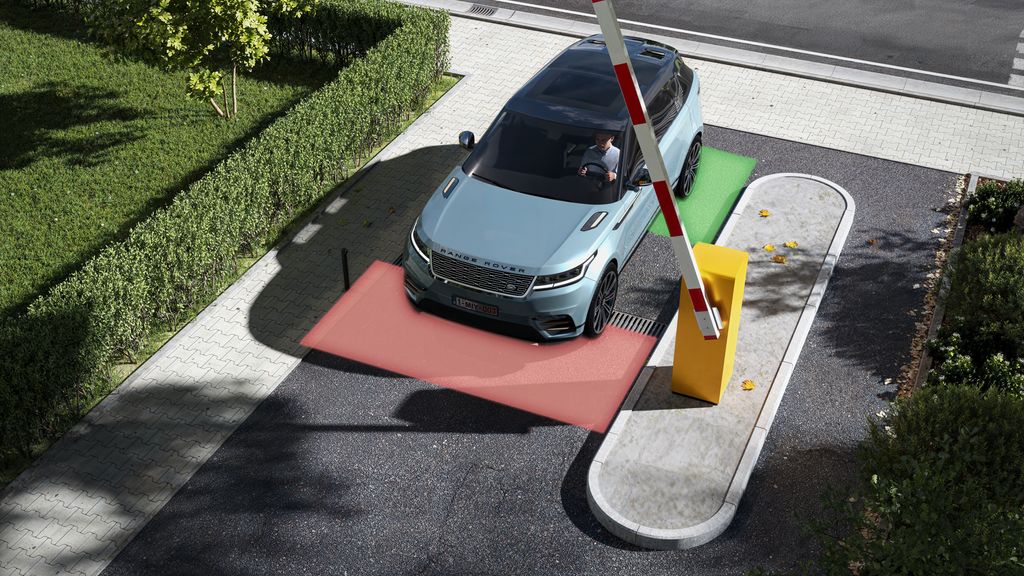

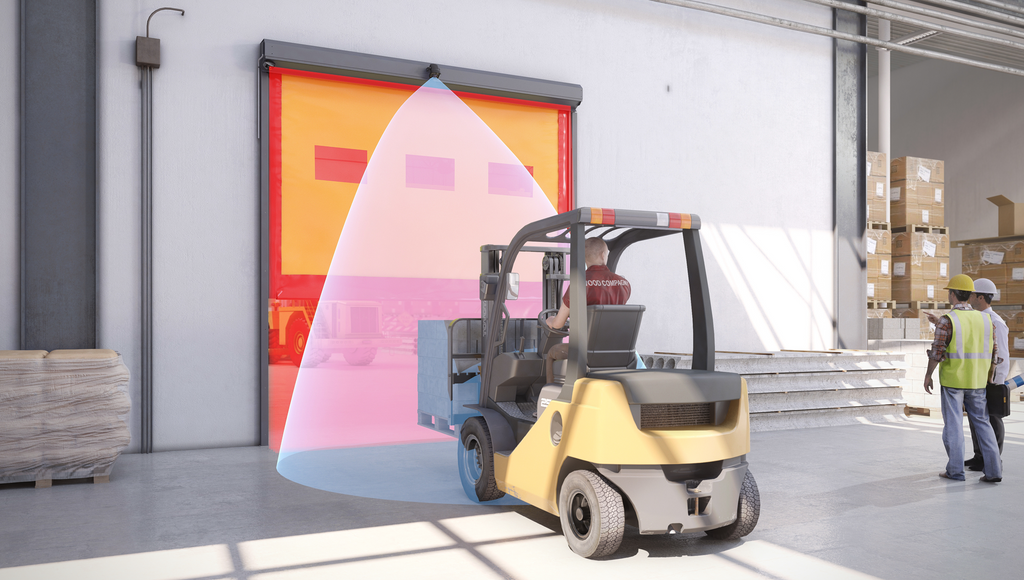

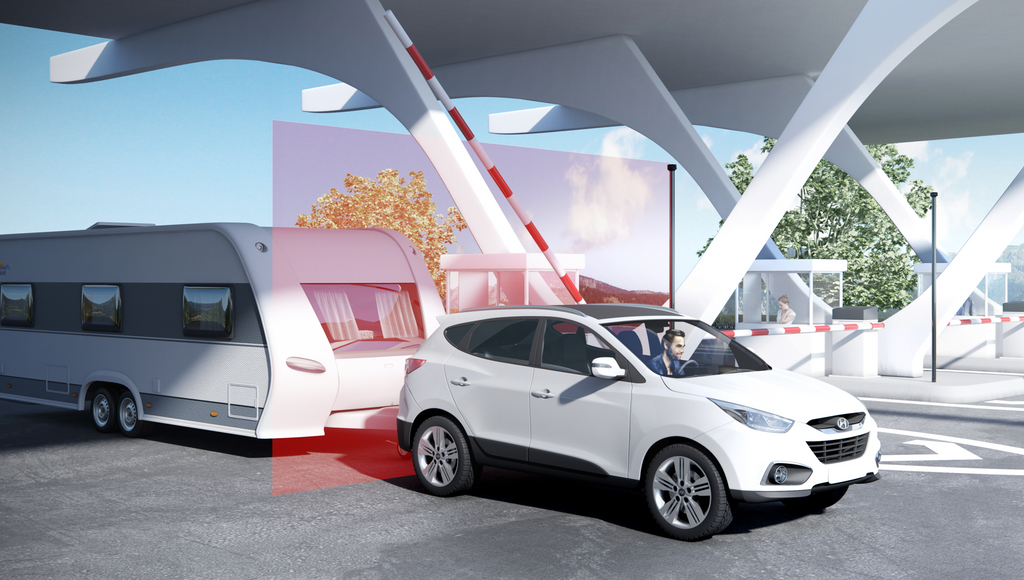

The IS40P is ideal for use on automatic industrial doors, vehicles gates / barriers, loading docks and other applications where presence detection is required. It can be mounted from 8 feet to 16 feet to fit most industrial applications.

Its rugged IP65 rated enclosure can withstand harsh environments and is capable of preventing damage caused by dust, rain and hose-directed water.

Features

Adjustable learn time

Nine unique infrared patterns capable of highly flexible presence detection in any industrial environment

Reduce false detections

Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection

Programmable via remote

Remote control programming enables user to quickly and safely make changes from the ground (sold separately)

Easy to program

Adjustable infrared immunity modes mitigate environmental disturbances such as subtle door vibrations, light, sun, rain and snow

Table of specifications

Technology

Active Infrared



Detection Mode

Presence



Mains Frequency

50 – 60 Hz



Power Consumption

< 3.5 W



Relay Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power

2 Relays (free of potential change-over contact)
42 VAC / VDC
1 A (resistive)
30 W (DC) / 48 VA (AC)



Supply Voltage

12 – 24 VAC ±10%
12 – 24 VDC 10% / −3%



Temperature Range

-22 – 140 °F



Tilt Angle

15 – 45º



Transmitter Frequency / Wavelength

875 nm



Transmitter Power Density

< 250 mW/m2



Detection Field

10’ × 10’ @ max. mounting height of 16’
(*emitting spots)



Output Hold Time

0.5 s



Min. Detection Speed

0 in / s to activate detection



Reaction Time

250 ms



Mounting Height

8 – 16’



Humidity

0 – 95% non-condensing



Weight

14 oz



Dimensions

3 45“ (W) × 4” (H) × 5” (D)



Material

ABS & Polycarbonate



Cable Length

32’



Degree of Protection

IP65



Norm Conformance

EMC: 2004/108/EEC
R&TTE: 1999/5/EC



*Zone detected by Spotfinder, i.e. slightly larger than actual detection field

Versions
  • is40p
    10IS40P

    Presence sensor with virtual loop functionality
