LED SIGNAL MODULAR LIGHTS

UL LISTED BUILD-YOU-OWN LIGHTS AND AUDIBLE ALARM

Description

BEA’s LED SIGNAL MODULAR LIGHTS and audible alarm series is part of a portfolio of warning indication products, including BEA activation, safety and presence sensors. These signal lights integrate seamlessly into industrial automation and vehicle flow management applications.

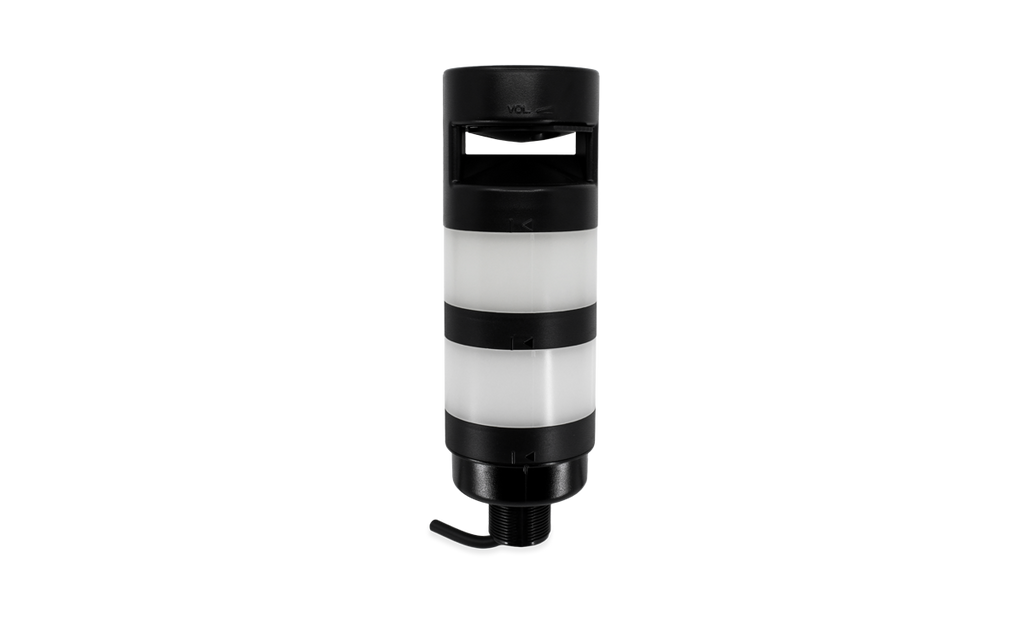

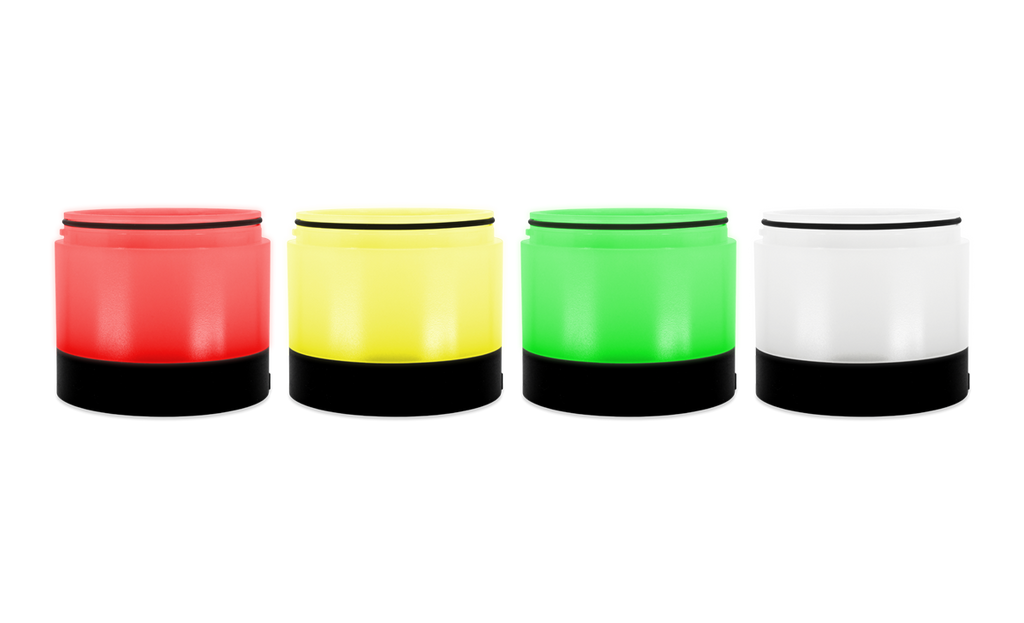

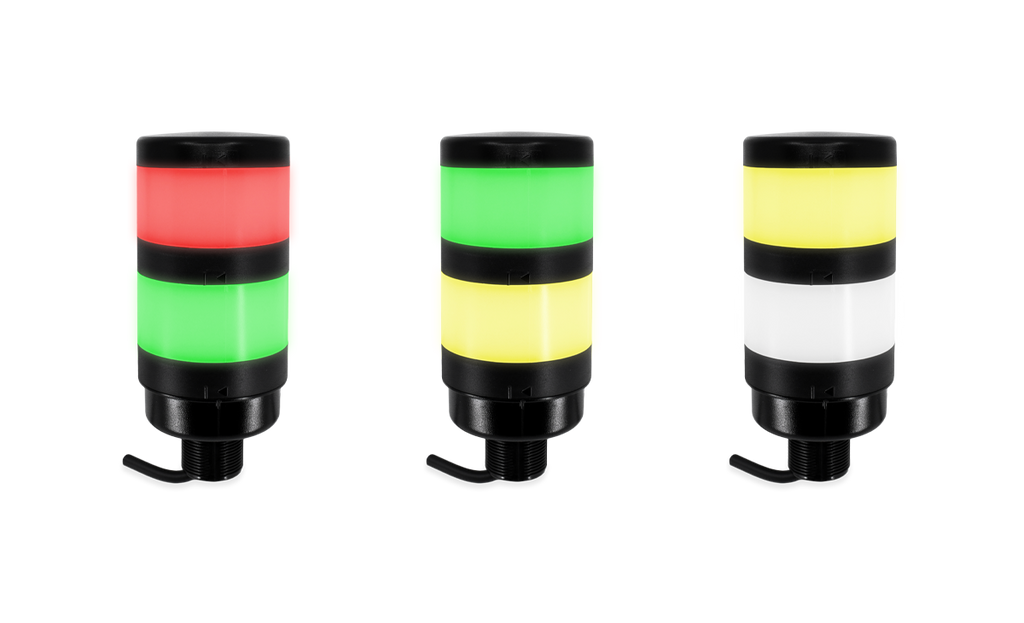

LED SIGNAL MODULAR LIGHTS offer customizable configurations with “build-your-own” lighting elements that share a common base and bracket. These LED signal units are available in red, green, yellow and an audible alarm cap and can be stacked in a tower configuration with up to six modules.

Features

Highly durable indicators

UL Listed and IP65 rated to meet the needs of any application

Adjustable settings

Light units can be programmed to pulse at a rate of 1.5 or 3 times per second or remain steady

Optional alerts

Optional audible alarm unit offers secondary alert method with chirp, siren, continuous and 1.5 beeps-per-second configuration settings

Flexible indication solution

Base unit and bracket are designed for a variety of installation

Table of specifications

Supply Voltage	12 – 30 VDC
Indicator Response Time Off Response On Response	150 μs @ 12 – 30 VDC 180 mSec @ 12 VDC; 50 mSec @ 30 VDC
LED Colors	Red, Green, Yellow
Light Flash Rates	1.5 Hz ±10% and 3 Hz ±10%
Audible Alarm	2.6 KHz ±250 Hz oscillation frequency; maximum intensity 92 dB at 39.6 in
Audible Adjustment	Rotate the alarm cover; Open to closed is 8 dB
Connector	78” 8-wire integral cable
Operating Temperature	-40 – 122 °F 95% @ 122 °F maximum relative humidity (non-condensing)
Degree of Protection	NEMA 4 / IP65
Norm Conformance	CE, UL 1598 Listed and UL 8750 Listed
Dimensions Base Light Segment Audible Segment	2.75 in ø X 1.38 in (H) 2.75 in ø X 2.38 in (H) 2.75 in ø X 2.75 in (H)

Versions

10LIGHT-TBASE

MODULAR LED SIGNAL LIGHT BASE – REQUIRED
10LIGHTBRACKET-TL70

MODULAR LED SIGNAL LIGHT BRACKET
10LIGHT-TR

MODULAR LED SIGNAL LIGHT SEGMENT – RED
10LIGHT-TG

MODULAR LED SIGNAL LIGHT SEGMENT – GREEN
10LIGHT-TY

MODULAR LED SIGNAL LIGHT SEGMENT – YELLOW
10LIGHT-A

MODULAR LED SIGNAL LIGHT AUDIBLE SEGMENT

Accessories

LED Signal Lights, Modular & Column Light Bracket, 10LIGHTBRACKET

Mounting bracket for BEA’s LED Signal Lights, Modular and Column series.

See the product
