MS41

STAINLESS STEEL, TOUCHLESS ACTUATOR WITH ADJUSTABLE RANGE AND RELAY HOLD TIME

Technology Radar

Description

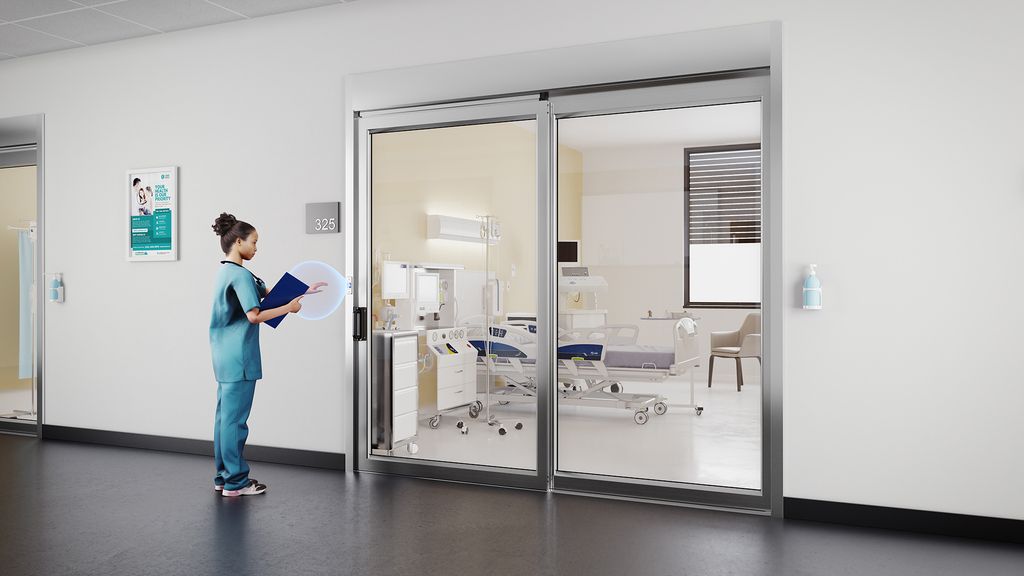

BEA’s MAGIC SWITCH^® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.

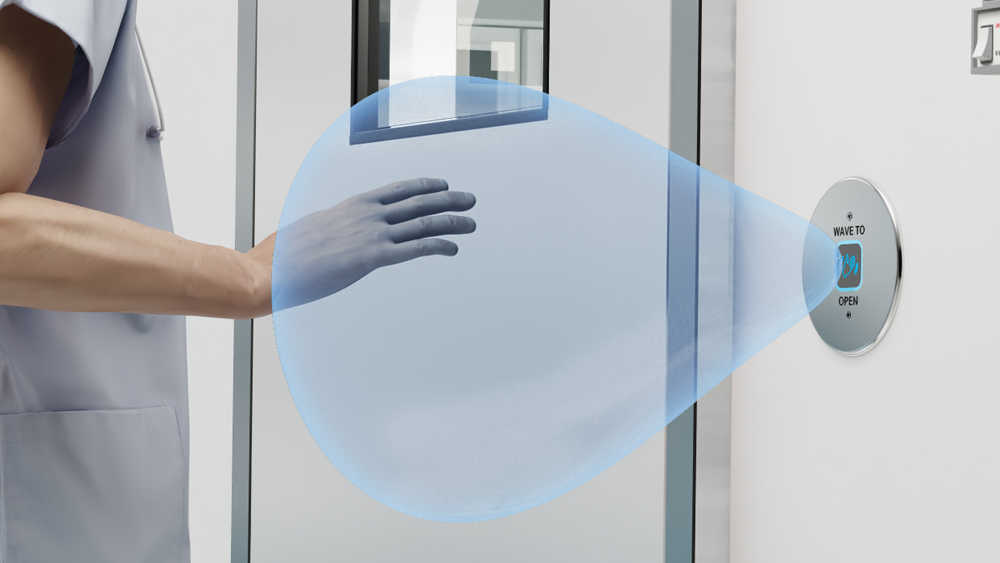

Using microwave technology, BEA’s MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.

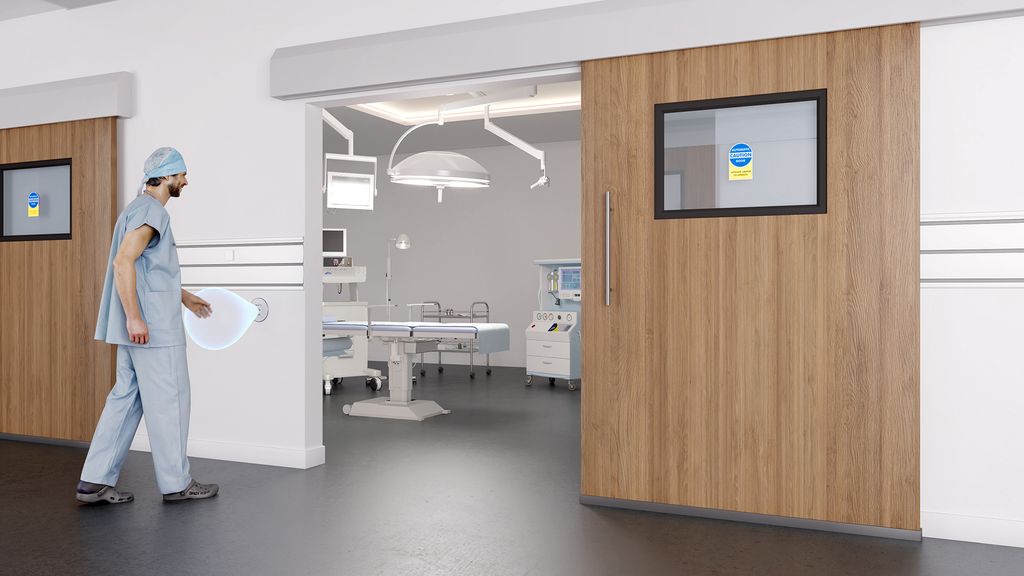

The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

Features

Ideal for harsh environments

IP55 rated enclosure capable of use in industrial and extreme washdown environments

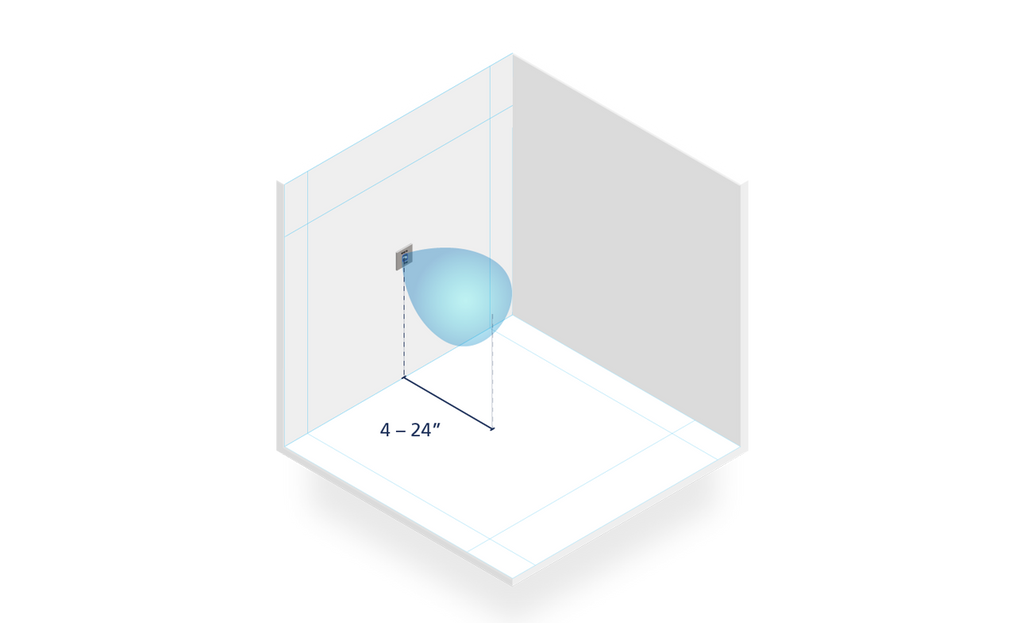

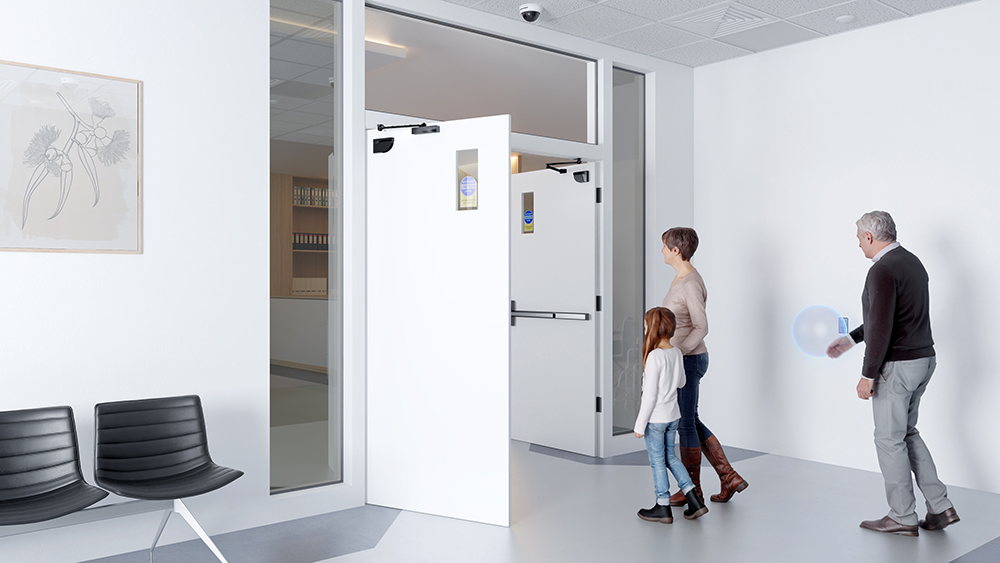

Adjustable detection zone

Adjustable sensing zone from 4 to 24 inches (timed or toggle)

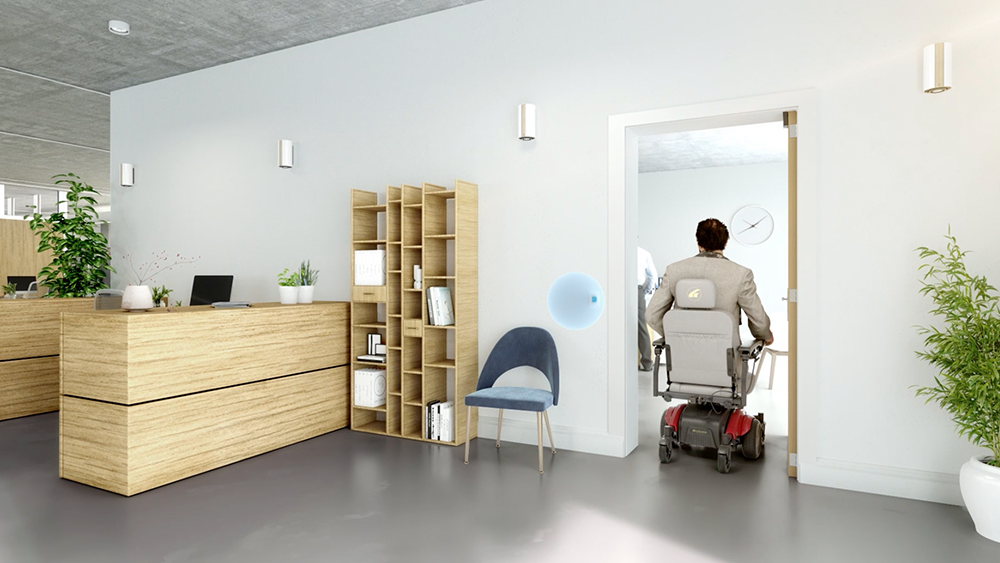

Adjustable hold time

Configurable output hold time of ½ to 30 seconds allowing unique, user-defined device placement

Durable faceplate

Stainless steel faceplate increases durability and protection from daily cleaning

Table of specifications

Technology Radiated Frequency Radiated Power Density	Microwave Doppler Radar 24.125 GHz < 5 mW/cm2
Detection Mode	Motion (bidirectional)
Detection Range	4 – 24” (adjustable)
Output Max. Contact Voltage Max. Contact Current Max. Switching Power	Relay with switch-over contact (voltage-free) 60 VDC / 125 VAC 1A (resistive) 30W DC / 60 VAC
Output Hold Time	0.5 – 30 s
Supply Frequency	50 – 60 Hz
Supply Voltage	12 – 24 VAC ±10% 12 – 24 VDC +30% / -10%
Power Consumption	< 1.5 W
Wire Gauge	26 – 22 AWG
Weight	0.34 lbs
Material	Stainless Steel
Temperature Range	-4 – 131 °F
IP Rating*	IP55 Apply silicone to achieve IP65
Dimensions** Single Gang Double Gang Round Cube	4 ½” (H) × 2 ¾” (W) × ⁹⁄₅₀” (T) 4 ½” (H) × 4 ½” (W) × ⁹⁄₅₀” (T) 6” (D) × ⁹⁄₅₀” (T) 2 ¹⁄₁₆” (H) × 1 ¹³⁄₁₆” (W) × 1 ¹⁄₈” (T)
Certification	EMC: 2004 / 108 / EC FCC: G9B-210161 IC: 4680A-210161

* See Users Guide
** MS41 is not compatible with some metallic cut-in electrical boxes. Please check cube
dimensions prior to installation.

Versions

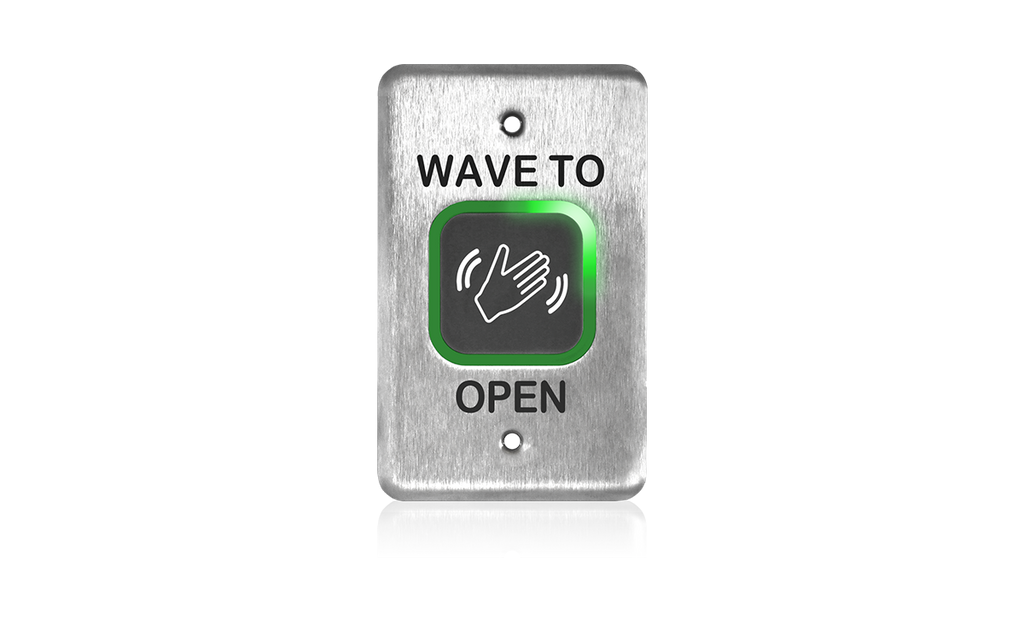

10MS41-S

Stainless steel single gang – text + hand logo
10MS41-SA

Stainless steel single gang – text + accessibility logo
10MS41-SP

Stainless steel single gang – plain
10MS41-D

Stainless steel double gang – text + hand logo
10MS41-DA

Stainless steel double gang – text + accessibility logo
10MS41-DP

Stainless steel double gang – plain

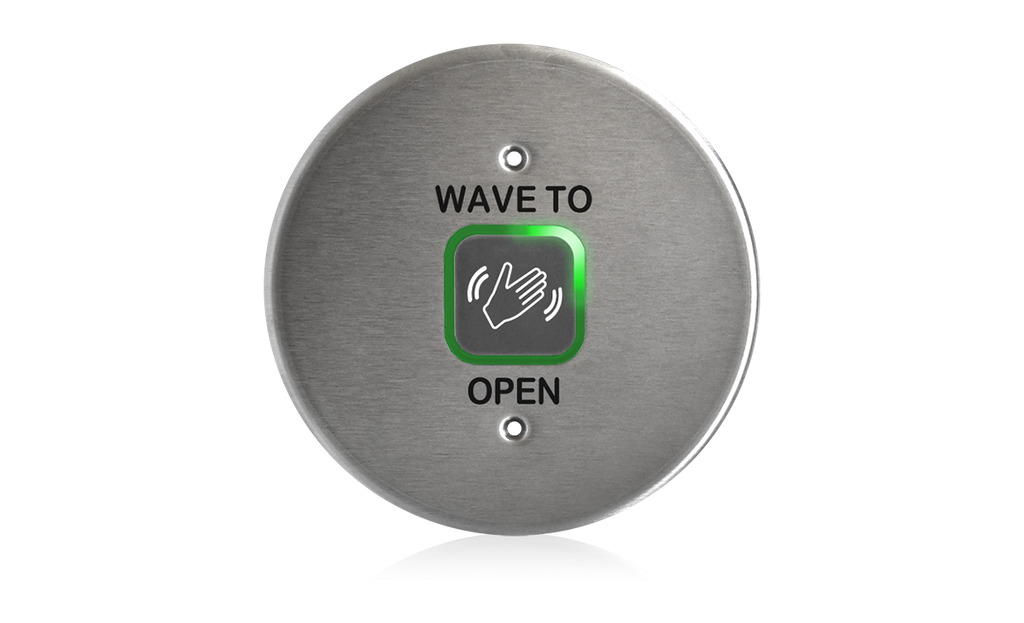

10MS41-R

Stainless steel round plate – text + hand logo
10MS41-RA

Stainless steel round plate – text + accessibility logo
10MS41-RP

Stainless steel round plate – plain

Accessories

900 MHz Retrofit Transmitter

BEA’s 900 MHZ RETROFIT TRANSMITTER is used to easily upgrade existing hardwired push plates to a touchless solution.

See the product
Push Plate Mounting Boxes

Mounting Accessories for BEA Push Plates

See the product
