MS09

NEMA 4 RATED, MICROWAVE TOUCHLESS ACTUATOR
ms09
Back to all products

Description

BEA’s NEMA 4 rated MS09 is a touchless activation device with an adjustable detection zone designed for harsh and industrial environments.

The surface mount MS09 utilizes microwave motion technology to ensure consistent and dependable activation. Conduit connectivity ensures a watertight installation in harsh environments and wash-down facilities.

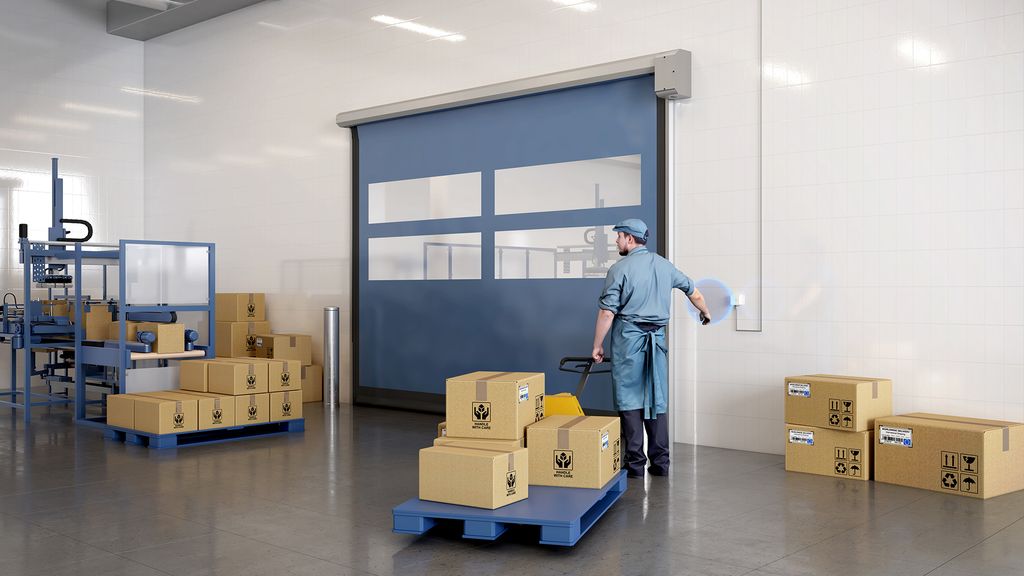

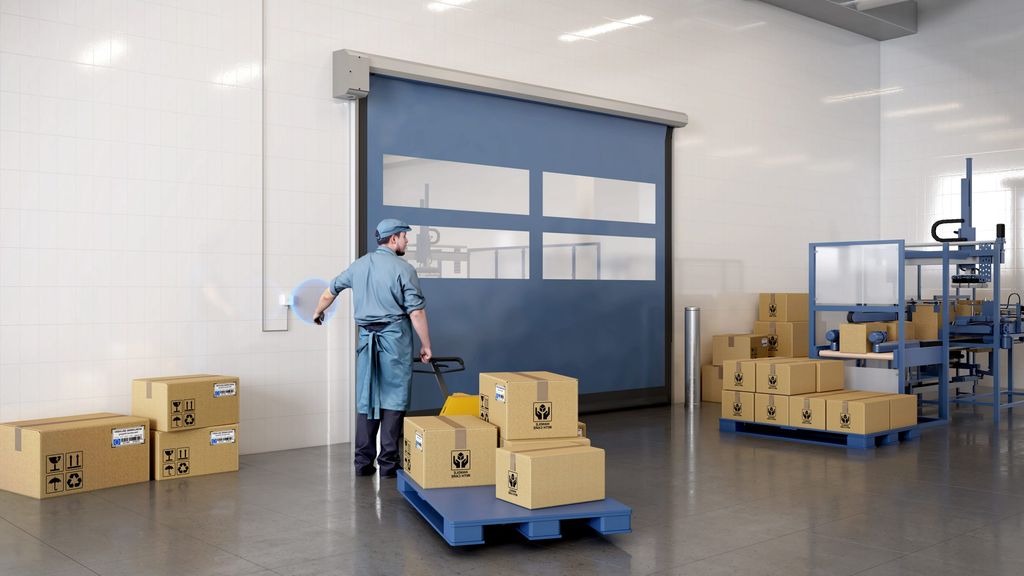

The MS09 detects moving objects such as a hand, pallet jack or forklift and is ideal for applications requiring a touchless activation method including hospitals, pharmacies, clean rooms and food services.

Features

Weather resistant housing

NEMA 4 / IP65 enclosure capable of use in industrial and extreme environments, as well as wash down facilities

Adjustable detection zone

User defined detection zone from 4 to 24 inches (pulse or toggle)

In door and outdoor use

Can be used in a variety of outdoor and off-door applications

Table of specifications

Technology
Radiated Frequency
Radiated Power Density

Microwave Doppler Radar
24.125 GHz
< 5 mW / cm2



Detection Mode

Motion (bidirectional)



Detection Range

4 – 24 inches (adjustable)



Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power

Relay with switch-over contact (free of potential)
60 VDC / 125 VAC
1 A (resistive)
30 W (DC) / 60 VA (AC)



Output Hold Time

0.5 s (in pulse mode)



Supply Voltage

12 – 24 VAC ±10%
12 – 24 VDC 30% / −10%



Power Consumption

< 1.2 W



Material / Colors

ABS / PC, White



Cable Type

Compatible with standard, 4-conductor low voltage cable
(cable not supplied)



Temperature Range

−4 ºF – 131 ºF (−20 ºC – 55ºC)



Degree of Protection

NEMA 4 / IP65



Norm Conformance

EMC: 2004/108/EC
FCC: G9B-MS08/2ABWS-10TD900PB
IC: 4680A-MS08/4680A-10TD900PB



Dimensions

3.15 in (W) × 3.23 in (H) × 2.165 in (D)


Versions
  • ms09
    10MS09TL

    NEMA 4 rated, microwave touchless actuator, text and logo

  • ms09-hand-only
    10MS09L

    NEMA 4 rated, microwave touchless actuator, logo only

Accessories
  • l-z-brackets
    L & Z Brackets

    L & Z Brackets for 600lb and 1200 lb single and double BEA Maglocks.

    See the product
  • 900mhz-retrofit
    900 MHz Touchless Retrofit Transmitter

    BEA’s 900 MHz touchless retrofit transmitter allows for easy upgrade of touch push plates to BEA’s Magic Switch series of touchless solutions.

    See the product
Videos
Downloads
Frequently asked questions

Why is the MS21 causing the door to cycle?

There is possibly a grounding issue. Ground all unused conductors in the same cable as the power conductors. Be sure to use shielded cable and verify that both ends of the cable are grounded.



Can the MS21 activate devices other than doors?

Yes. Always review power calculations to verify amperage and voltage limitations.



Are BEA touchless switches compatible with all brands and types of doors?

Yes.



How is the MS08 wired?

The MS08 has a 4-wire configuration:

red and black = power

white = common

green = normally open

spare terminal = normally closed (if needed)



How do you adjust the relay hold time?

The relay hold time potentiometer (POT).



Is there an audible alert?

MS21 = yes (DIP)

MS08/09 = N/A

MS11 = yes (jumper)



Is there a toggle or latching feature?

MS21H = N/A

MS08/09 = yes (output switch)

MS11 = yes (output mode jumper)



Do I need a special type of wire for any of the Magic Switch products?

Only the MS21 requires shielded wire. All other Magic Switch products (MS08, MS09, MS11) require a standard grade, 4-conductor cable.



Is it possible to make a Magic Switch wireless?

Using the 900 MHz Retrofit Transmitter, a Magic Switch can transmit wirelessly but still requires power to be hard-wired.



What are the minimum and maximum ranges for the MAGIC SWITCHES?

MS08: 4″ to 24″

MS09: 4″ to 24″

MS11: 2″ to 24″

MS21: 0″ to 4″
