MS31

MICROWAVE TOUCHLESS ACTUATOR WITH ADJUSTABLE RANGE AND RELAY HOLD TIME
Technology Radar
MS31 FAMILY

Description

BEA’s MAGIC SWITCH Family utilizes proven microwave motion technology to ensure consistent, dependable touchless activation and can be adjusted to comply with the ANSI 156.10 knowing act standard.

The MS31 detects moving objects such as a hand, cart or wheelchair and reduces touchpoints in high traffic areas commonly found in shopping and transportation centers. Applications requiring hygienic activation include hospitals, pharmacies, clean rooms and foodservice facilities.

Features

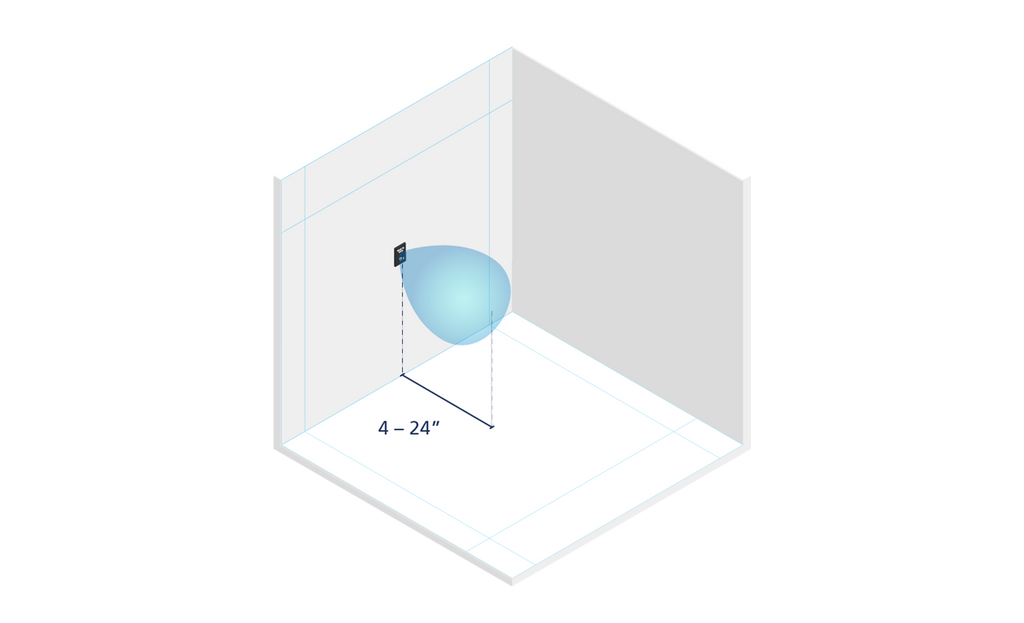

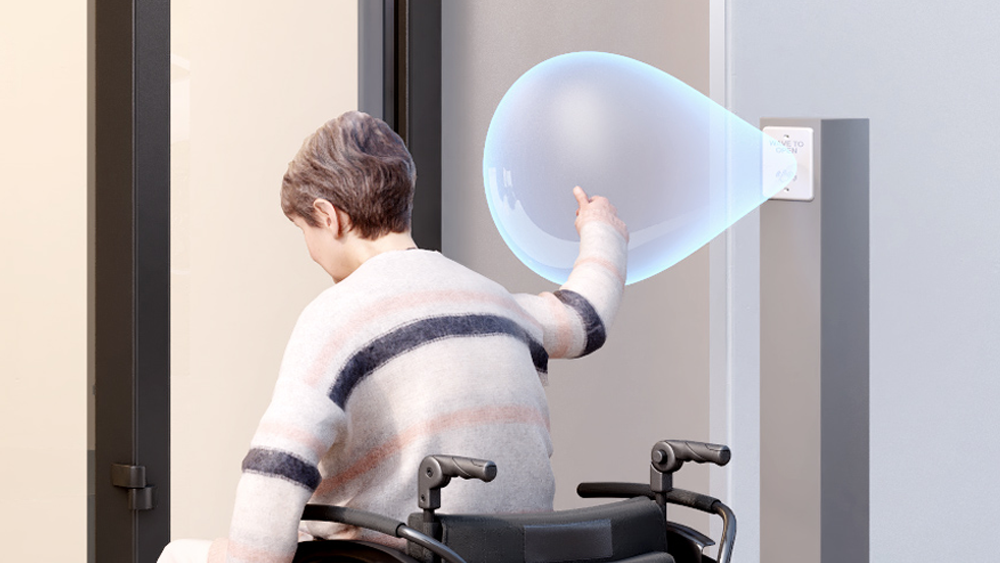

Adjustable detection zone

MS31-Feature-Detection-Zone

Detection zone from 4 to 24 inches (timed or toggle)

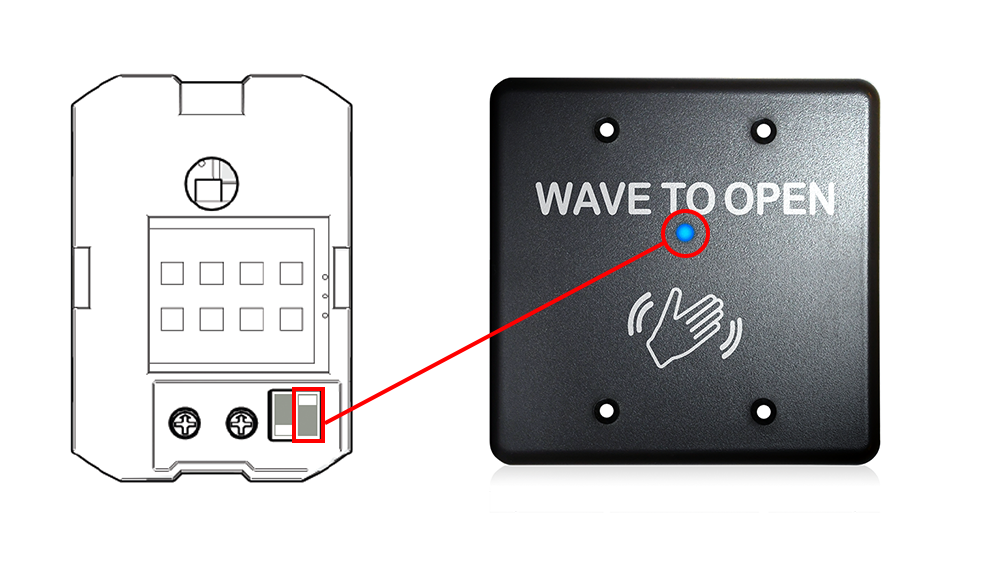

Adjustable LED setting

MS31-Feature-2

Dipswitch position determines if LED illuminated when in detection or when not in detection

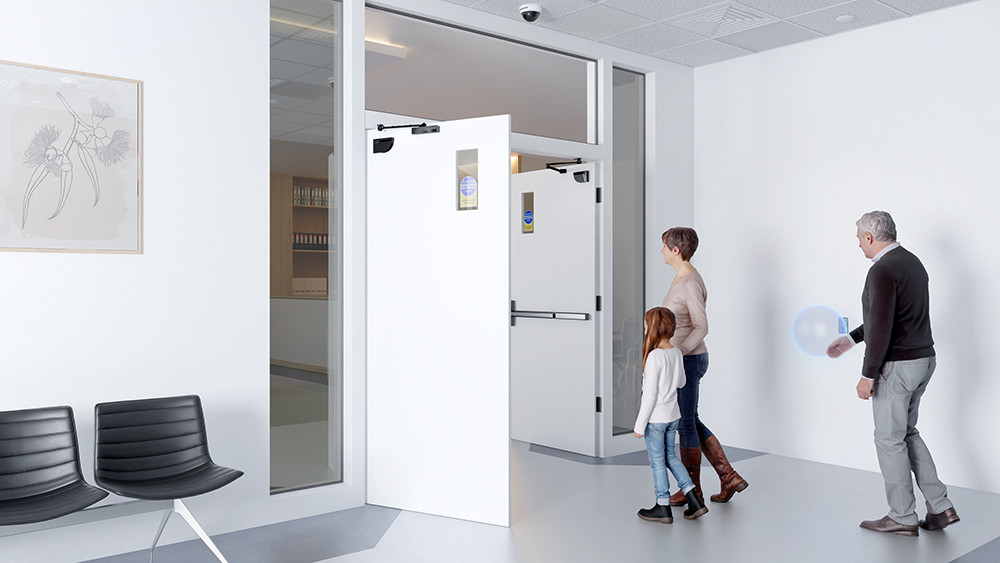

Silent Activation

MS31-Hallway-F&B

Silent activation for hospitals and other noise-sensitive environments

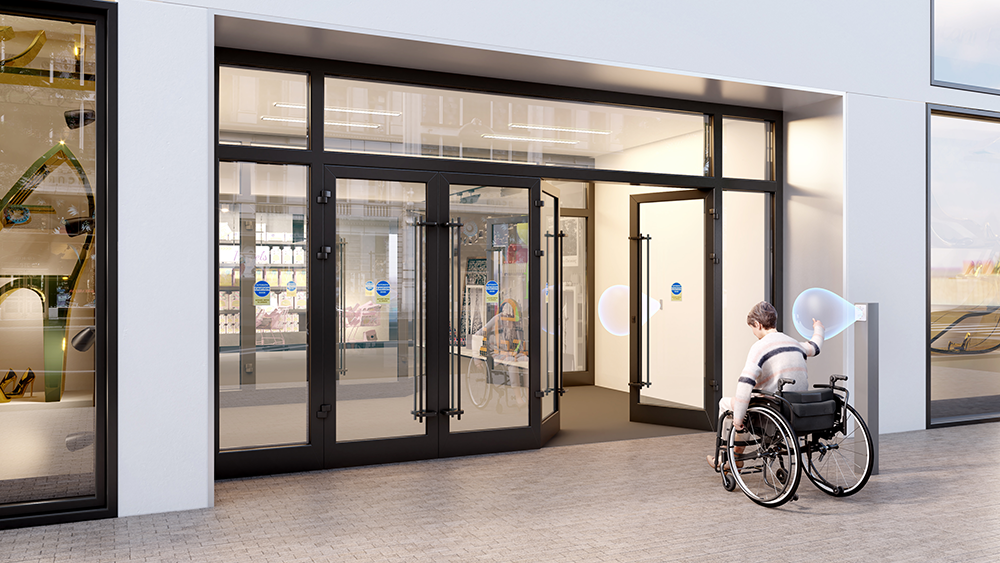

Durable design

MS31-Vestibule-F&B

IP54 rated enclosure for protection against outdoor weathering and
daily cleaning

Table of specifications

Technology
Radiated Frequency
Radiated Power Density

Microwave Doppler Radar
24.125 GHz
< 5 mW / cm²



Detection Range

4 – 24” (adjustable)



Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power

Relay with switch-over contact (voltage-free)
60 VDC / 125 VAC
1 A (resistive)
30 W (DC) / 60 VA (AC)



Output Hold Time

0.5 – 30 s



Supply Frequency

50 – 60 Hz



Supply Voltage*

12 – 24 VAC ±10%, 12 – 24 VDC +30% / -10%



Power Consumption

< 1.5 W



Weight

0.34 lbs



Material

PC, PE



Temperature Range

-4 – 131 ºF (-20 – 55 ºC)



IP Rating

IP54



Dimensions
Single Gang
Jamb Plate
Double Gang
Round Plate


4 ½” (H) × 2 ¾” (W) × ¼” (T)
4 ½” (H) × 1 ¾” (W) × ¼” (T)
4 ½” (H) × 4 ½” (W) × ¼” (T)
6” (D) × ¼” (T)



Certification

EMC: 2004 / 108 / EC
FCC: G9B-210161
IC: 4680A-210161



*To be operated from SELV-compatible power supplies only

Versions
  • 10MS31CUSTOM
    10MS31BASE

    Choice of accessibility logo or plain in all size options

  • 10MS31U-BGW
    10MS31U - B/G/W

    Black, gray or white, kit w/ single and double gang

  • 10MS31J - B/G/W

    Black, gray or white, kit with jamb

  • 70.5849
    10MS31R - B/G/W

    Black, gray or white, kit with 6” round

  • 70.5869
    70.5869

    Single gang – black, plain

  • 70.5833
    70.5833

    Single gang – black, text + hand logo

  • 70.5834
    70.5834

    Single gang – black text + accessibility logo

  • 70.5872
    70.5872

    Jamb plate – black, plain

  • 70.5825
    70.5825

    Jamb plate – black, text + hand logo

  • 70.5826

    Jamb plate – black text + accessibility logo

  • 70.5887
    70.5887

    Double gang – black, plain

  • 70.5841
    70.5841

    Double gang – black, text + hand logo

  • 70.5842
    70.5842

    Double gang – black, text + accessibility logo

  • 70.5871
    70.5871

    Round plate – black, plain

  • 70.5849
    70.5849

    Round plate – black, text + hand logo

  • 70.5850
    70.5850

    Round plate – black, text + accessibility logo

  • 70.5835
    70.5835

    Single gang – gray, plain

  • 70.5836
    70.5836

    Single gang – gray, text + hand logo

  • 70.5837
    70.5837

    Single gang – gray, text + accessibility logo

  • 70.5827
    70.5827

    Jamb plate – gray, plain

  • 70.5828

    Jamb plate – gray, text + hand logo

  • 70.5829
    70.5829

    Jamb plate – gray, text + accessibility logo

  • 70.5843
    70.5843

    Double gang – gray, plain

  • 70.5844
    70.5844

    Double gang – gray, text + hand logo

  • 70.5845
    70.5845

    Double gang – gray, text + accessibility logo

  • 70.5851
    70.5851

    Round plate – gray, plain

  • 70.5852
    70.5852

    Round plate – gray, text + hand logo

  • 70.5853

    Round plate – gray, text + accessibility logo

  • 70.5838
    70.5838

    Single gang – white, plain

  • 70.5839
    70.5839

    Single gang – white, text + hand logo

  • 70.5840
    70.5840

    Single gang – white, text + accessibility logo

  • 70.5830
    70.5830

    Jamb plate – white, plain

  • 70.5831
    70.5831

    Jamb plate – white, text + hand logo

  • 70.5832
    70.5832

    Jamb plate – white, text + accessibility logo

  • 70.5846
    70.5846

    Double gang – white, plain

  • 70.5847
    70.5847

    Double gang – white, text + hand logo

  • 70.5848
    70.5848

    Double gang – white, text + accessibility logo

  • 70.5854
    70.5854

    Round plate – white, plain

  • 70.5855
    70.5855

    Round plate – white, text + hand logo

  • 70.5856
    70.5856

    Round plate – white, text + accessibility logo

Accessories
  • 900mhz-retrofit
    900 MHz Retrofit Transmitter

    BEA’s 900 MHZ RETROFIT TRANSMITTER is used to easily upgrade existing hardwired push plates to a touchless solution.

  • boxes-collage
    Push Plate Mounting Boxes

    Mounting Accessories for BEA Push Plates
