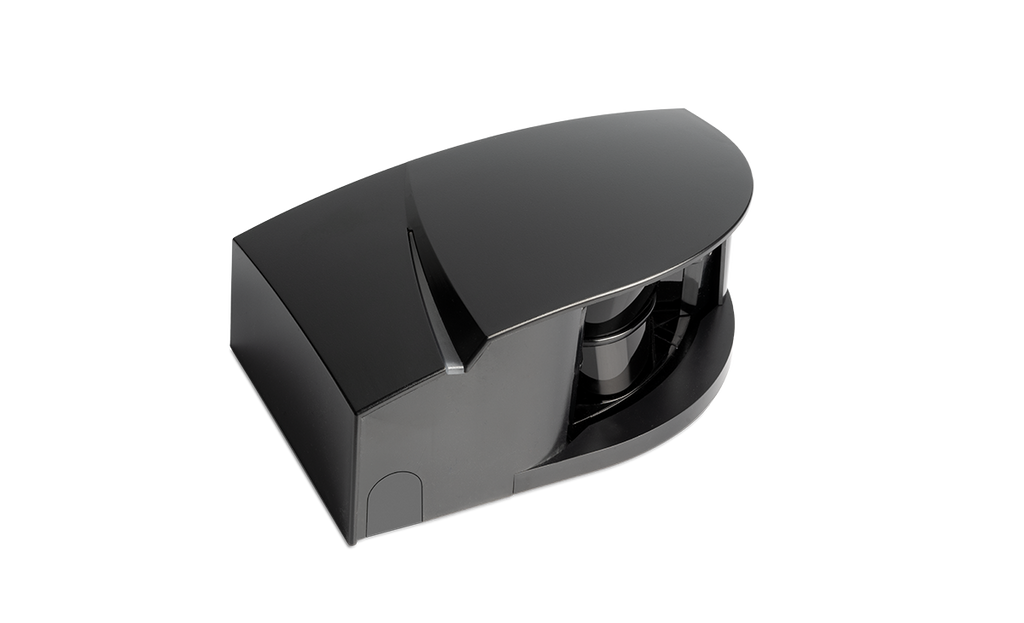

LZR-FLATSCAN 3D SW

FOUR CURTAIN STAND-ALONE, DOOR-MOUNTED SAFETY SYSTEM
Technology Laser
LZR-FLATSCAN-3D-Web

Description

BEA’s LZR®-FLATSCAN 3D SW is a LASER-based Time-of-Flight presence sensor for swing doors. The four curtains create a three dimensional detection pattern covering the door’s entire pathway, benefiting daily users in healthcare, education, and commercial settings.

The deep detection pattern reduces sudden door movements preventing contact with the user. Also, lessening the door’s wear and tear. Additional safety features include Leading Edge Safety and Finger Detection Technology. Coverage of the hinge area and the leading edge is increased, avoiding any risk of contact.

Completely touchless. Utilize Virtual Push Buttons in addition to a knowing act device. Convenient in settings that rely on hygienic solutions, like surgical environments.

The LZR-FLATSCAN 3D SW is capable of exceeding the 156.10 section 8.2.2.3 standard for detection area and meets section 8.1.4 for monitoring.

Features

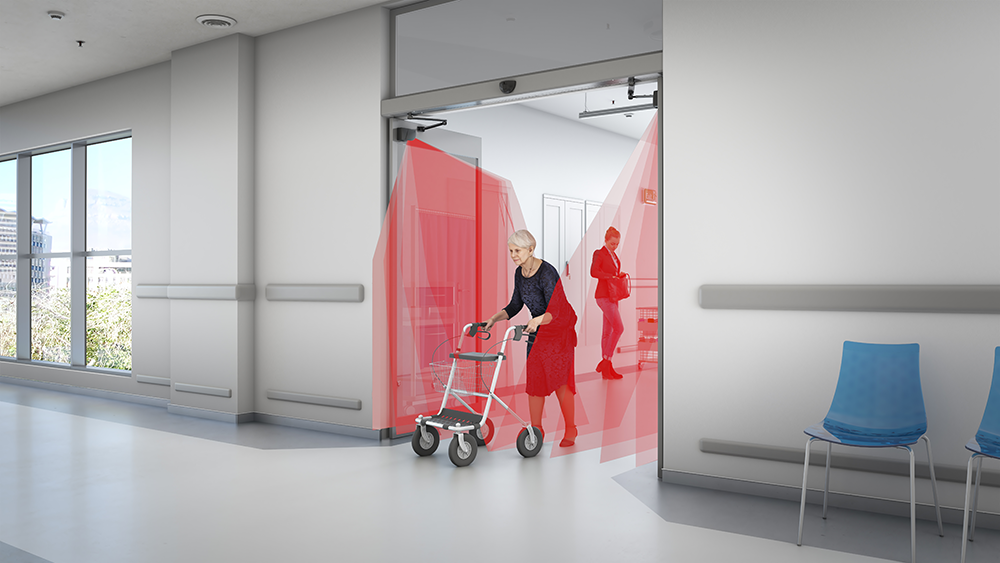

Advanced Safety

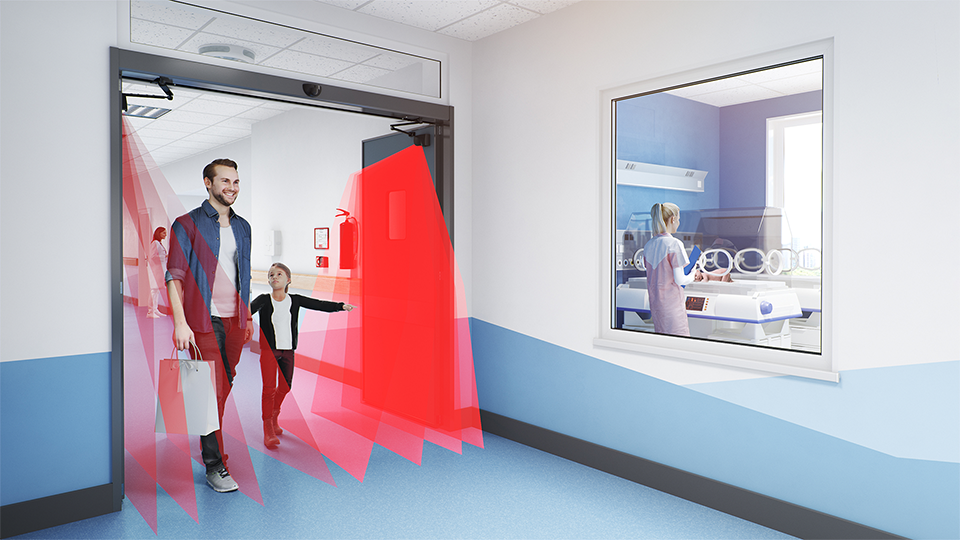

The four detection curtains ensure a full-safety coverage of the leaf, hinge area and leading edge of the door

Adaptive Sensing

High-resolution detection curtains create a reliable solution with the ability to self-adapt as the door opens, preventing false detections from guide rails and tight corridors

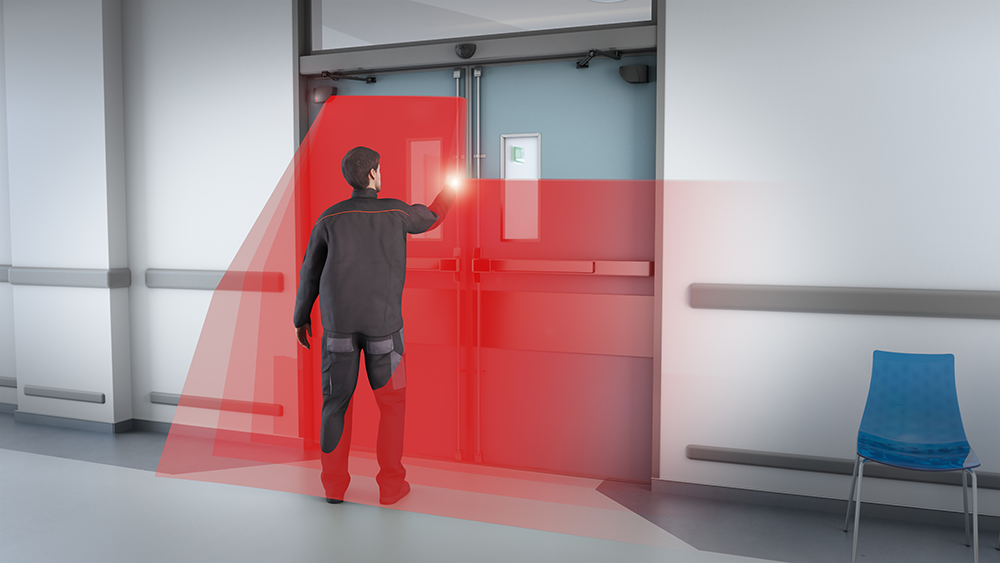

Virtual Push Button

Achieve an additional form of initial activation by programming up to two Virtual Push Buttons

Easy Setup

Hub-less system offers fewer components for a more straightforward setup and installation. While Hand Gesture Setup reduces configuration time with easy door width programming

Table of specifications

Technology

LASER scanner, Time-of-Flight measurement



Detection Mode

Presence



Max. Detection Range

13’ (diagonal) with reflectivity of 2%
(e.g. at (W) × 5’ > max. (H) × 12’)



Recommended
Mounting Height


75 – 98”



Opening Angle
Door Leaf Safety
Pinch Zone Safety


80°
20°



Angular Resolution
Curtain 1
Curtain 2
Curtain 3
Curtain 4


0.2°

1.7°
2.5°



Tilt Angles

0 – 5°



Typ. Min. Object Size

¾” @ 13’ in curtain C1



Emission Characteristics
IR LASER

Wavelength 905 nm;
output power < 0.1 mW; Class 1



Supply Voltage

12 – 24 VDC ±15%
(to be operated from SELV-compatible power
supplies only)



Power Consumption

< 2 W



Response Time

Typ. < 120 ms
Max. 220 ms



Output
Max. Switching Voltage
Max. Switching Current

3 electronic relays (galvanic isolation - polarity free)
42 VAC / VDC
100 mA



LED Signals

1 RGB LED: Detection / Output Status



Dimensions
Mounting Base
Spacer

5 ¾” (L) × 3 ½” (H) × 2 ⅓” (D)
D + ¾”
D + 1 ½”



Material / Color

PC / ASA / Black



Degree of Protection

IP44 (IEC 60529)



Temperature Range

-13 – 140 °F



Humidity

0 – 95% non-condensing



Vibrations

< 2 G



Min. Door Leaf Speed

2° / s



Norm Conformity

ISO 13849-1 Pl “d”/ CAT2
IEC 60825-1
IEC 62061 SIL 2


Versions
  • 10LZRFLATSCAN3D-SWBK
    10LZRFLATSCAN3D-SWBK

    Left & Right Sensor Kit, Black

  • 10LZRFLATSCAN3D-LBK
    10LZRFLATSCAN3D-LBK

    Single Sensor Kit, Left, Black

  • 10LZRFLATSCAN3D-RBK
    10LZRFLATSCAN3D-RBK

    Single Sensor Kit, Right, Black

  • 10LZRFLATSCAN3D-LBK
    10LZRFLATSCAN3D-LB

    Left Replacement Sensor, Black

  • 10LZRFLATSCAN3D-RBK
    10LZRFLATSCAN3D-RB

    Right Replacement Sensor, Black

Accessories
  • flatscan-sw-glass-door-accessory-grey-montage-01-640x389
    LZR-FLATSCAN Glass Door Accessory (GDA)

    Glass door accessory for the LZR-FLATSCAN

  • 10LZRFLATSCAN3D-SWBK
    LZR-FLATSCAN 3D SW Replacement Cover

    Replacement covers for the LZR-FLATSCAN 3D SW Sensor

  • flatscan 3d replacement base group
    LZR-FLATSCAN 3D SW Replacement Base

    Replacement base for the LZR-FLATSCAN 3D SW Sensor

  • LZR-FLATSCAN-SW-Spacer-Black
    LZR-FLATSCAN 3D SW Spacer

    Spacer for the LZR-FLATSCAN 3D SW Sensor

  • LZR-FLATSCAN SW Master-Slave Harness
    LZR-FLATSCAN SW Primary/Secondary Harness

    Primary/secondary harness for the LZR-FLATSCAN 3D SW and LZR-FLATSCAN SW

  • LZR-FLATSCAN 3D SW CONTROL HARNESS
    LZR-FLATSCAN 3D SW Control Harness

    Control Harness for the LZR-FLATSCAN 3D SW

  • Sentrex Filler Plate
    SENTREX Retrofit Accessory

    Retrofit accessory for use when replacing the SENTREX sensor system with BEA’s door-mounted, swing door safety sensors.
