Eagle Family

MOTION SENSOR FOR AUTOMATIC DOORS
eagle

Description

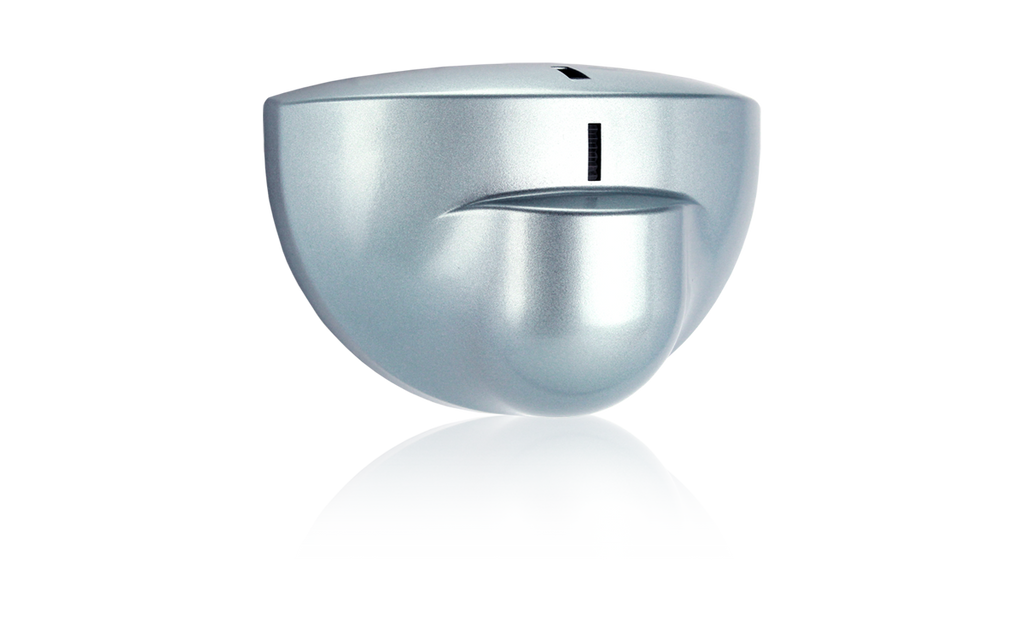

BEA’s Eagle Family of motion sensors is designed for the activation of automatic pedestrian doors.

The Eagle is universally compatible with all makes and models of swinging, sliding and revolving automatic doors. The Eagle HM has a mounting height of 13 to 16.5 feet, making it ideal for use on large-format doors in industrial environments.

Unidirectional radar increases energy efficiency by detecting approaching traffic while ignoring motion away from the door.

Features

Save on energy costs

Energy savings due to unidirectional detection capability

Eliminate false detections

Immunity settings can be adjusted to reduce unwanted detections caused by rain, snow and header vibrations

Accurate and precise

PRM mode for applications frequently used by persons with reduced mobility (i.e. wheelchair or elderly traffic)

Aesthetically pleasing design

Compact, low profile design

Table of specifications

Technology

Microwave Doppler Radar



Detection Mode

Motion



Transmitter Frequency

24.150 GHz



Transmitter Radiated Power

< 20 dBm EIRP



Transmitter Power Density

< 5 mW/cm2



Minimum Detection Speed

2 in / s (measuring based on optimal conditions)



Mounting Height
Eagle
Eagle HM


6’ – 13’
10’ – 16’6”



Supply Voltage

12 – 24 VAC ±10%
12 – 24 VDC 30% / -10%



Mains Frequency

50 – 60 Hz



Maximum Power Consumption

< 2 W



Output
Maximum Contact Voltage
Maximum Contact Current
Maximum Switching Power

Relay (free of potential change-over contact)
42 VAC / VDC
1 A (resistive)
30 W (DC) / 60 VA (AC)



Cable Length
Eagle
Eagle HM


96 in (8 ft)
96 in (8 ft)



Degree of Protection

IP54



Tilt Angles

0° – 90° vertical; −30° to 30° lateral



Norm Conformance

R&TTE 1999 / 5 / EC; EMC 2004 / 108 / EC;

LVD 2006 / 95 / EC RoHS 2 2011 / 65 / EU


Versions
  • eagle
    10EAGLE

    Microwave motion sensor

  • eagle
    10EAGLE1HM

    High-mount microwave motion sensor for industrial doors

Accessories
Videos
Downloads
Frequently asked questions

I replaced an EAGLE on a STANLEY door. Why is it working abnormally?

STANLEY uses a custom EAGLE called the SU100. When installing a standard EAGLE, set the relay output to “2”.



Why is the two-way traffic, swing door with EAGLEs on both sides recycling?

The EAGLE is mounted in a way that the door is causing activation due to the movement of the door. Move the sensor beyond the lead edge of the door and assure it complies with ANSI 156.10



Can an EAGLE be used to activate a low-energy door?

No, a low-energy door must be “knowing act” and cannot be activated by a motion sensor. The EAGLE can be used for reactivation but not initial activation.



What is the function of the two buttons on the EAGLE?

The two buttons adjust the zone size (sensitivity); the top button adjusts larger and lower button adjusts smaller. If both buttons are pushed together and held for 2 seconds the sensor will be reset to factory values.



I replaced a Stanley EAGLE with a BEA EAGLE. How do I set the LED the same as before?

You cannot do this. The Stanley EAGLE LED is red at rest and blank while in detection. The BEA EAGLE is blank at rest and red while in detection.



Can I use an EAGLE to release an electric lock?

Yes. Use the contacts to break the positive leg of power to your electric lock.



Can I install an EAGLE onto a moving door?

No. The EAGLE can only be utilized in a fixed position and must be static.



Can I use an EAGLE to provide safety for my door?

No. The EAGLE can never be used in this manner because it is a motion detector. You will need a presence sensor for this type of application.



See all our products
