Technology Active infrared

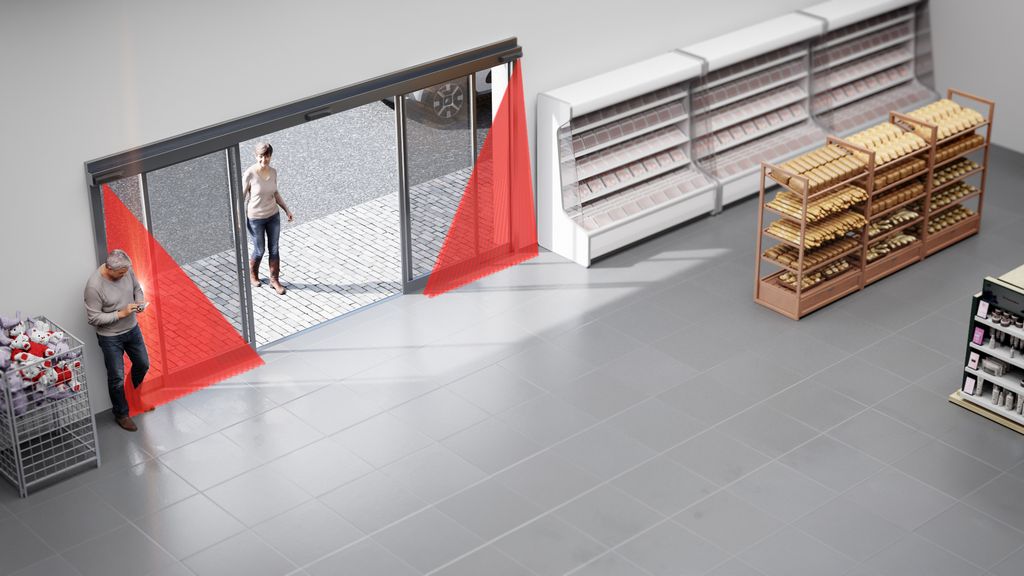

BEA’s IXIO-ST is an effective, versatile and easy-to-use presence sensor for automatic sliding doors. It can be used for both clear door openings and side-lite protection.

Precise infrared curtains coupled with visible alignment beams make the IXIO-ST extremely safe and easy to adjust. This state-of-the-art sensor features an on-board LCD screen that streamlines the installation and setup processes.

The IXIO-ST can be adjusted into an ANSI compliant solution and has earned a comprehensive list of credentials and certifications, including FCC and IP54.


Standards compliant

Fully monitored internally, capable of external monitoring

Precise presence detection

Two 24-spot, high-density, infrared safety curtains providing precise presence detection

Ease of setup

Intelligent programming and troubleshooting via a menu-driven LCD

Intelligent solution

On board microprocessor optimizes data analysis, monitors sensor performance and enables system integration

Table of specifications


Active Infrared


Detection Mode



Spot Size

2” × 2”


Max. Number of Spots

24 per curtain


Max. Number of Curtains



Max. Contact Voltage
Max. Contact Current
Hold Time

(potential and polarity free)
42 VAC / VDC
400 mA
Infrared: 0.3 – 1 s

(potential and polarity free)
42 VAC / VDC
400 mA
Infrared: 0.3 – 1 s

Test Input

Low: < 1 V;
High: > 10 V (max. 30 V)
Response time on test
typical: < 5 ms

Low: < 1 V;
High: > 10 V (max. 30 V)
Response time on test
typical: < 5 ms

Supply Voltage

12 – 24 VAC ±10%; 12 – 30 VDC ±10% (to be operated from SELV compatible power supplies only)


Power Consumption

< 2.5 W


Mounting Height

6 ½ – 11 ½’


Temperature Range*

-13 – 131 °F
0 – 95% relative humidity, non-condensing


Degree of Protection



Applicable Directives

R&TTE 1999 / 5 / EC; LVD 2006 / 95 / EC;
MD 2006 / 42 / EC; ROHS 2 2011 / 65 / EU



10 35“ (W) × 2 ¼” (H) × 2 ¼” (D)


Cable Length



Norm Conformity

ISO 13849-1:2008 PL «c» CAT. 2
(under the condition that the door control system
monitors the sensor at least once per door cycle)
IEC 61496-1:2012 ESPE Type 2


*LCD screen is operational from 14 – 131 °F. The sensor may still be programmed in colder temperatures, but with the remote control.

  • ixio-dt1_st

    Presence sensor for automatic sliding doors

Frequently Asked Questions

Why will the IXIO’s active infrared safety pattern not hold the door open?

The brown and blue wires must be connected, or F1 must be set to “1” using the remote control.


Why is the PNP harness not working on a BESAM control?

The harness is reversed; the short harness plugs into the IXIO.


Why is the RECORD sliding door holding open?

The RECORD control uses a normally closed safety circuit; set the safety output to N.C.


Why is the IXIO bliking red on a DORMA door?

The IXIO is defaulted to monitoring ON; connect the two (2) purple monitoring wires to the control.


How do I eliminate four (4) orange LED flashes or “low AIR”?

Verify the pattern width shutters are not closed (the software should still be set to wide).Verify the active infrared safety pattern is not tilted out too far away from the door.

Turn off the 2nd active infrared safety pattern row.


Why does the door recycle open?

If the red LED illuminates, the active infrared safety curtain needs adjusted.

If the green LED illuminates, the microwave activation angle/sensitivity/immunity needs adjusted.


What are the extra wires not connected to the door control?

The two (2) purple wires are for monitoring and the yellow wire is for N.C. activation relay.


How do I locate the IXIO’s active infrared safety pattern relative to the door face?

Double-click the gray knob to turn on the visible red aligment spots or press UNLOCK > MAGIC WAND > + on the remote control, and then use the red knob to adjust active infrared saftey pattern to within 3” of the face of the sliding door panel. After adjustment, relaunch a setup.


How do I use an IXIO for 1-way traffic reactivation?

If the door is equipped with a two-way traffic option, connect the white and green wires to the activation circuit.

If the door is NOT equipped with a two-way traffic option, DO NOT connect the white and green wires to the activation circuit; instead, connect the brown and blue wires to the safety circuit.

Using the LCD, set RAD: REENTRY to value “”3″” or “”4″”. Walk-test to ensure there is a minimum of a 24” reactivation zone.


Why does the IXIO LED blink fast red when I try to unlock it with the remote control?

A lock code has been entered. To remove it, power cycle the IXIO and then press UNLOCK > LOCK > 0000.
