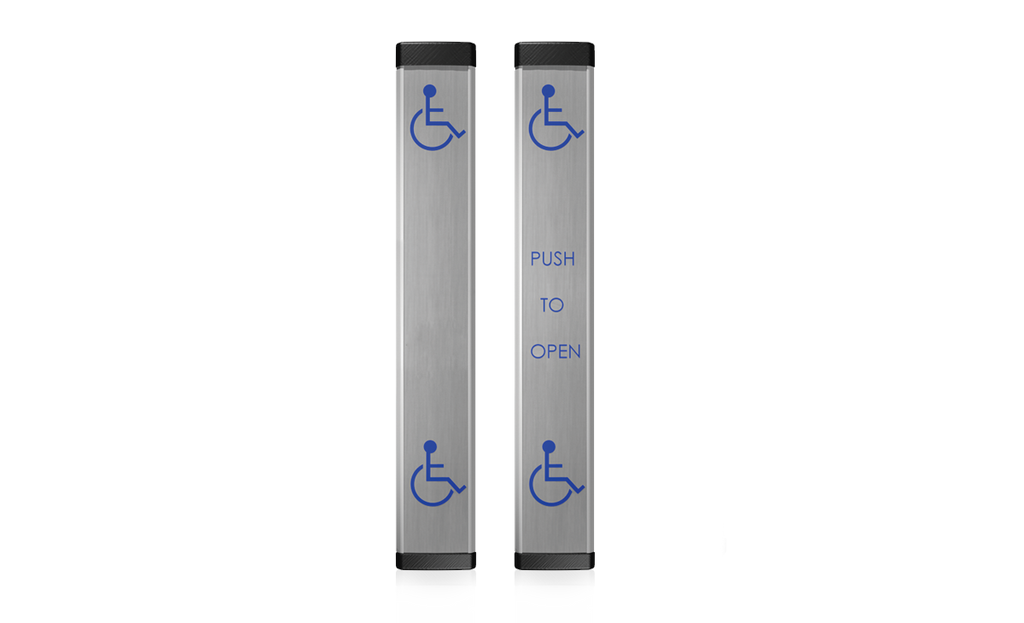

LPR36

FULL-LENGTH, 36 INCH HIGH-LOW ACTUATOR

Description

BEA’s LPR36 is a 36 inch actuator that exceeds all local ADA building codes requiring high and low actuators, eliminating the need to install two separate devices.

This stainless steel plate utilizes four highly-sensitive membrane switches that require very little force and ensure actuation across the entire surface. This functionality enhances accessibility for those with limited mobility or disabilities.

Available in wireless and hard wire versions, the LPR36 can be conveniently mounted in a variety of locations.

Features

Enhances accessibility

Offers a mean of activation of automatic doors for those with limited mobility or disabilities

Easily converts to wireless

Available with convenient, built-in wireless transmitter (300, 433 or 900 MHz frequencies) for wireless activation applications

Low profile, aesthetically pleasing design

Low profile (1 inch deep) design helps prevent accidental damage in high traffic areas

Standard compliant, high accessibility plate

Exceeds California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c

Table of specifications

Contact Configuration	SPST N.O.
Switching Voltage	0.1 – 50 VDC
Switching Capacity	1 Watt
Switching Current	0.005 – 100 mA DC
Operating Temperature	-32 – 212 °F (-35 – 100 °C)
Material Base Face Plate Switch Actuator End Cap Hardware	6063 Aluminum 304 Stainless Steel Nylon 66 UL94 ABS Stainless Steel
Compliance	California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c
