PANTHER FAMILY

PUSH PLATES WITH INTEGRATED WIRELESS TECHNOLOGY
panther-family

Description

BEA’s PANTHER FAMILY consists of 900 MHZ or 433 MHZ wireless technology integrated into 6 INCH ROUND, 4.75 INCH ROUND and 4.75 INCH SQUARE PUSH PLATES.

With an integrated wireless transmitter and mounting box, the PANTHER FAMILY reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware.

This offers greater mounting flexibility in areas where hardwired push plates cannot be mounted.

*Corresponding wireless receiver sold separately

Features

Enhances accessibility

ENHANCED ACCESSIBILITY APPLICATIONS-02

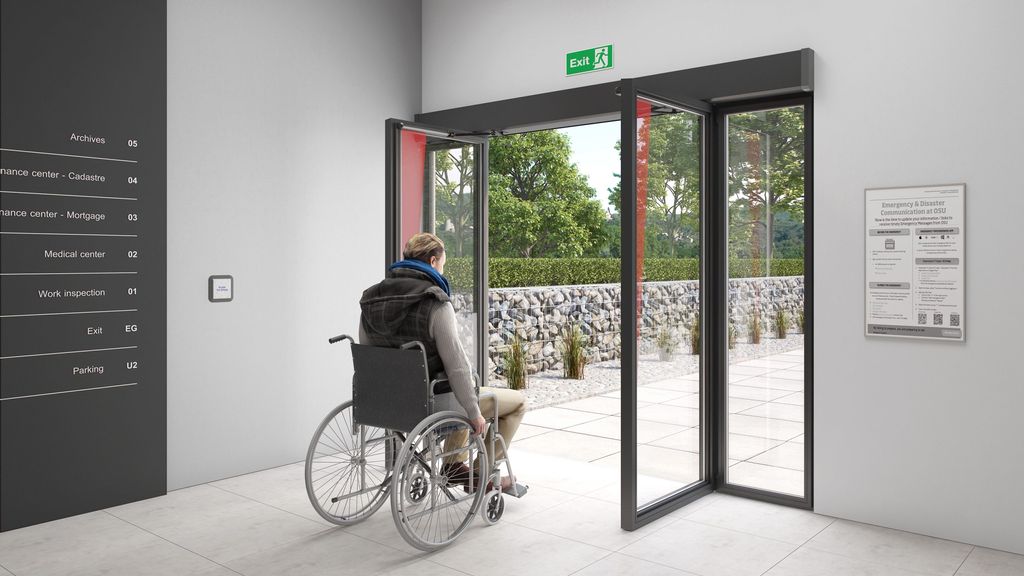

Offers a means of activation of automatic doors for these with limited mobility or disabilities

Wireless compatibility

ENHANCED ACCESSIBILITY APPLICATIONS-03

Reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware

Weather-rated

IP65 rated housing creates a weather resistant barrier that enables the push plates to be mounted in outdoor environments or wash-down applications

Vandal resistant

Concealed fasteners minimize vandalism

Table of specifications

Dimensions
6” Round
4.75” Round
4.75” Square


6 13“ (ø) × 1 920“ (D)
5 325“ (ø) × 1 2150“ (D)
5 325“ (W) × 5 325“ (H) × 1 2150“ (D)



Weight
6” Round
4.75” Round
4.75” Square


1.2 lbs
1.14 lbs
1.04 lbs



Mounting Options

Surface or bollard mount



Transmitter Frequency

433 MHz or 900 MHz



Power
433 MHz
900 MHz


(1) 12 V Type A23
(2) CR2032



Material
Faceplate
Housing


16 Gauge, 304 2B Stainless Steel
ABS Plastic



Degree of Protection

IP65
FCC IC Part 15 Approved



*Corresponding frequency receiver required
**See 433 MHz and 900 MHz User’s Guides for more information on BEA’s wireless transmitters and receivers

Versions
  • 10EMR61

    6 in Round, Text & Logo with 433 MHz

  • 10EMR6L

    6 in Round, Logo Only with 433 MHz

  • 10EMR6

    6 in Round, Text Only with 433 MHz

  • 10EMR4751

    4.75 in Round, Text & Logo with 433 MHz

  • 10EMR475L

    4.75 in Round, Logo Only with 433 MHz

  • 10EMR475

    4.75 in Round, Text Only with 433 MHz

  • ems4751_-900
    10EMS4751

    4.75 in Square, Text & Logo with 433 MHz

  • 10EMS475L

    4.75 in Square, Logo Only with 433 MHz

  • ems475_-900
    10EMS475

    4.75 in Square, Text Only with 433 MHz

  • 10EMR61-900

    6 in Round, Text & Logo with 900 MHz

  • 10EMR6L-900

    6 in Round, Logo Only with 900 MHz

  • 10EMR6-900

    6 in Round, Text Only with 900 MHz

  • 10EMR4751-900

    4.75 in Round, Text & Logo with 900 MHz

  • 10EMR475L-900

    4.75 in Round, Logo Only with 900 MHz

  • 10EMR475-900

    4.75 in Round, Text Only with 900 MHz

  • ems4751_-900
    10EMS4751-900

    4.75 in Square, Text & Logo with 900 MHz

  • 10EMS475L-900

    4.75 in Square, Logo Only with 900 MHz

  • ems475_-900
    10EMS475-900

    4.75 in Square, Text Only with 900 MHz
