SUPERSCAN-T

DOOR MOUNTED, ACTIVE INFRARED SAFETY SENSOR
superscan

Description

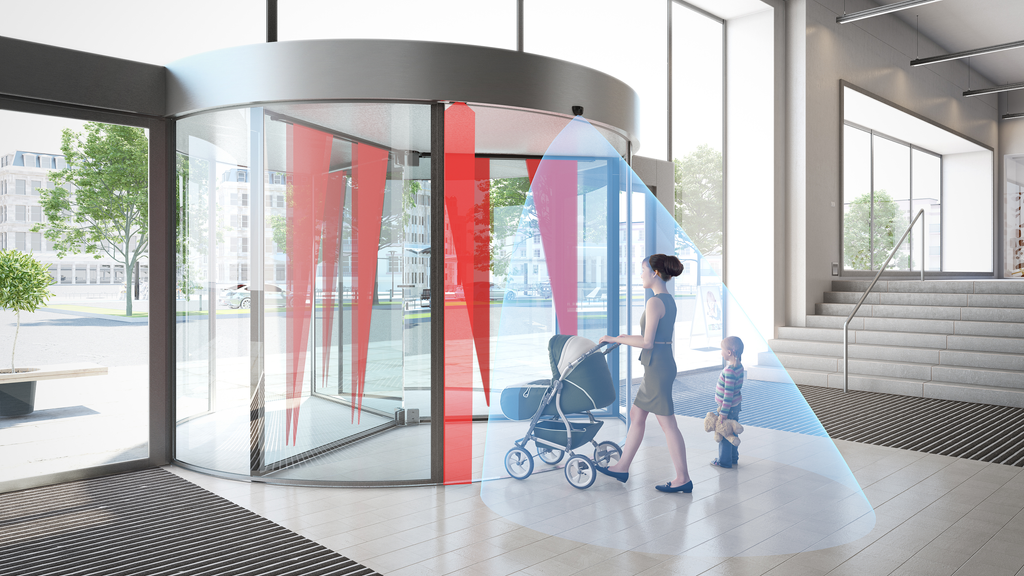

BEA’s SUPERSCAN-T is a door mounted, active infrared safety sensor designed for use on automatic swinging, revolving, folding and low energy doors.

The SUPERSCAN-T uses triangulation to detect the presence of a pedestrian, while the door is opening and closing.

The SUPERSCAN-T can be used as an individual module or daisy chained with additional secondary modules. This flexibility allows the SUPERSCAN-T to be used on both narrow and wide doors. Each module detection zone can be adjusted independently.

Features

Fit to the application

Housing available up to 102 inches in length; can be field cut to desired door width

ANSI compliant

Capable of meeting ANSI 156.10 standard for swing door safety when coupled with BEA’s BODYGUARD-T

Functional Design

Designed to mount at the top of the door to reduce accidental damage

Standards compliant

Capable of external monitoring

Table of specifications

Technology

Active Infrared with background suppression



Detection Mode

Presence



Measurement of Distance

Triangulation



Power Supply

12 to 24 VAC / VDC ±10%



Output Interface; Relay

Relay – max. contact rating: 1A @ 30 V (resistive)



Detection Range

0 – 8'



Distance Adjustment

2 – 8’ (rotating cam with linear adjustment)



Max. Mounting Height

8’



Detection Signal Duration

Infinite Presence Detection



Detection Time

< 50 ms



Output Hold Time

Potentiometer range: 0.1 – 4.5 s



Operating Temperature Range

–30 – 140 °F



PCB Dimensions
Primary
Secondary


10.91 in (W) × 1.5 in (H)
8.75 in (W) × 1.5 in (H)



Connector to Door Controller

8-position screw terminal on Primary PCB



Primary-to-Secondary Connection

Flat-ribbon cable with connectors and key lock



Max. Number of Secondaries

8



Functions Selection

Detection mode: NO or NC
Normal mode or Background Analysis mode


Versions
  • superscan
    10SSTI

    1 Primary
    34.5 in (end cap to end cap)

  • superscan
    10SSTI40

    1 Primary
    40 in (end cap to end cap)

  • superscan
    10SSTI42

    1 Primary
    42 in (end cap to end cap)

  • superscan
    10SSTI48

    1 Primary
    48 in (end cap to end cap)

  • superscan
    10SSTII

    1 Primary 1 Secondary
    34.5 in (end cap to end cap)

  • superscan
    10SSTII40

    1 Primary 1 Secondary
    40 in (end cap to end cap)

  • superscan
    10SSTII42

    1 Primary 1 Secondary
    42 in (end cap to end cap)

  • superscan
    10SSTII48

    1 Primary 1 Secondary
    48 in (end cap to end cap)

  • superscan
    10SSTIII

    1 Primary 2 Secondaries
    34.5 in (end cap to end cap)

  • superscan
    10SSTIIICUSTOM

    1 Primary 2 Secondaries
    Custom Length

  • superscan
    10SSTIVCUSTOM

    1 Primary 3 Secondaries
    Custom Length

  • superscan
    10SSTVCUSTOM

    1 Primary 4 Secondaries
    Custom Length

  • superscan
    10SSTVICUSTOM

    1 Primary 5 Secondaries
    Custom Length

  • superscan
    10SSTVIICUSTOM

    1 Primary 6 Secondaries
    Custom Length

  • superscan
    10SSTVIIICUSTOM

    1 Primary 7 Secondaries
    Custom Length

Accessories
  • q-disconnect
    SUPERSCAN-T Q-Disconnect

    Quick Disconnect Harness for BEA’s SUPERSCAN-T

Downloads
Frequently asked questions

What do the jumpers do?

See “Mechanical Adjustments” section of the User’s Guide.



Why does the SUPERSCAN-T only detect when I’m standing on a ladder?

Ensure that the SUPERSCAN-T is mounted in the correct orientation (lens is facing down).



Why does the door recycle open?

The SUPERSCAN-T is detecting too far down.  Adjust the range by turning the potentiometer located in between the lenses; each click represents about 4″.



Which terminals power the SUPERSCAN-T?

Terminals 7 and 8



Why is the SUPERSCAN-T behaving as if it is wired normally closed but I have it wired normally open?

The SUPERSCAN-T changes relay state on power up.  For normally open operation, use terminals 5 and 6, and for normally closed operation, use terminals 4 and 6.



What adjustments can be made on the SUPERSCAN-T?

There are 3 basic mechanical adjustments:

1. Tilt angle is adjusted using the white clips in the housing.

2. Detection width is adjusted left or right by sliding the white clips in the housing.

3. Detection height is adjusted by turning the screw that moves the lenses closer together or farther apart.
