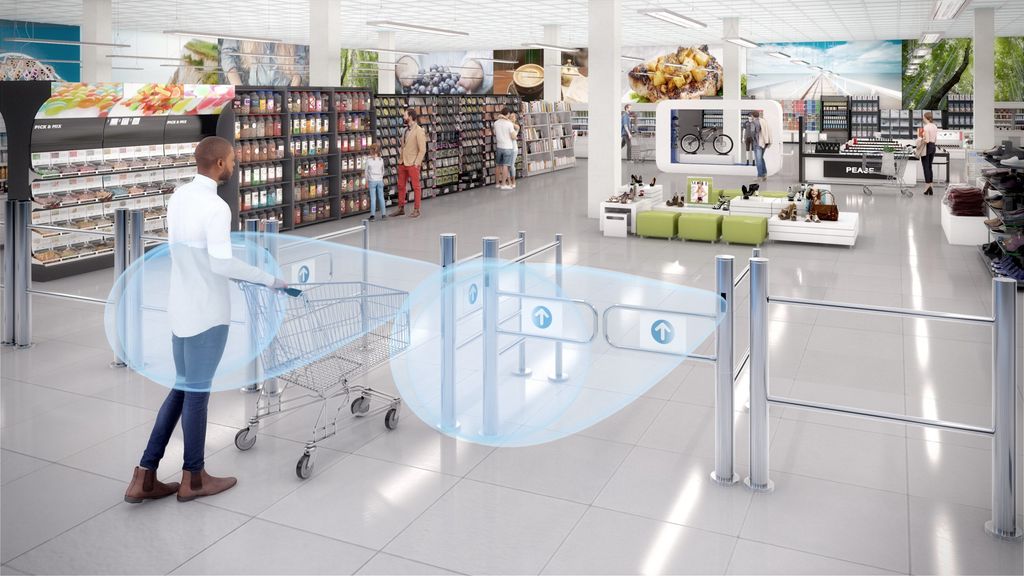

COLIBRI ONE

UNIDIRECTIONAL MOTION SENSOR FOR OFF-DOOR APPLICATIONS

Description

BEA’s COLIBRI ONE is a motion sensor designed for the detection of pedestrians, slow moving vehicles and other objects in motion.

COLIBRI ONE has the sensitivity to detect objects moving as slow as 2 inches per second; and its compact size makes it a perfect motion detector for any commercial or industrial application, both indoor and outdoor.

Along with common pedestrian and industrial applications, this sensor has been used in custom mass transit configurations on trains and buses.

Features

Customizable settings

Variable sensitivity adjustment provide different detection areas

Variable mounting

Lateral angle adjustment for ceiling, wall and low level mount versatility

Compact, low profile

Compact size provides flexibility in mounting

Ideal for off door applications

Pairs well with LED Signal Lights for warning indication applications

Table of specifications

Technology	Microwave Doppler Radar
Detection Mode	Motion
Transmitter Frequency	24.150 GHz
Transmitter Radiated Power	< 20 dBm EIRP
Transmitter Power Density	< 5 mW / cm²
Min. Detection Speed	2 in / s (measured in sensor axis)
Supply Voltage	12 – 24 VDC 30% / –10%
Mains Frequency	50 – 60 Hz
Max. Power Consumption	< 2 W
Output Max. Contact Current Max. Contact Voltage	Solid-state-relay (free of potential change-over contact) 100 mA 35 VDC / 24 VAC
Mounting Height	6 – 10’
Degree of Protection	IP54
Temperature Range	-4 – 131 °F
Dimensions	3 ⅕” (W) × 2 ⅖” (H) × 2 ⅕” (D)
Tilt Angles	0 – 90° vertical; -30 – 30° lateral
Material	ABS & polycarbonate
Weight	5 oz
Cable Length	8’
Norm Conformance	R&TTE 1999 / 5 / EC; EMC 2004 / 108 / EC

Versions

10COLIBRI

Unidirectional motion sensor for off-door applications
