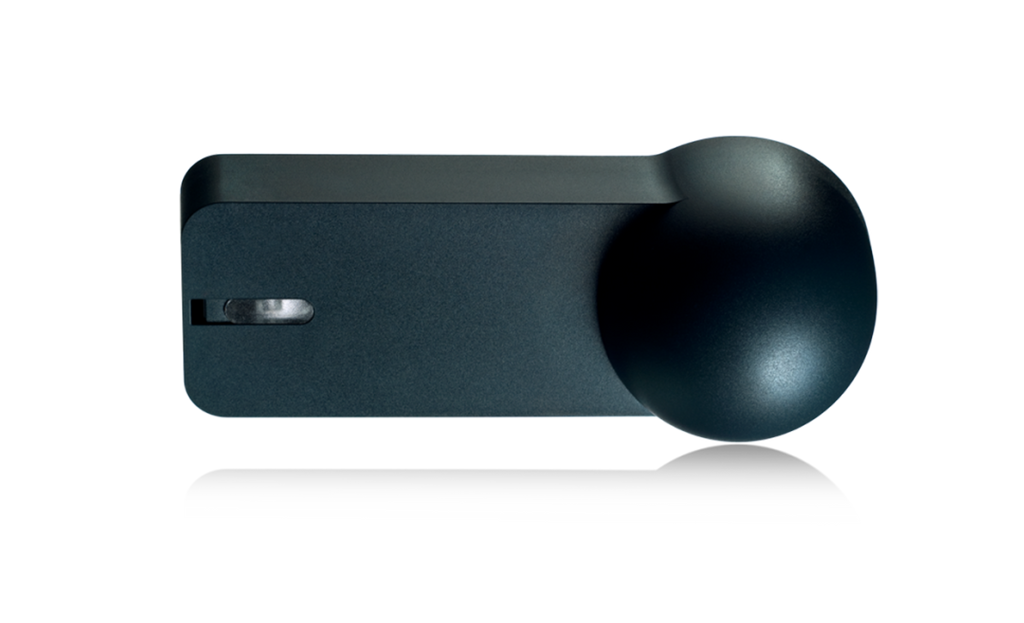

Sparrow

VARIABLE MOUNT INDUSTRIAL MOTION SENSOR
sparrow-vertical

Description

BEA’s Sparrow is a highly flexible motion sensor designed to detect people and vehicles in a variety of industrial, security and pedestrian applications. The Sparrow’s adjustable microwave antenna can be rotated ±120 degrees to create different sensing fields, capable of detecting bi-directional traffic (two way), unidirectional (approach only) and unidirectional away (departure only).

The Sparrow is designed to operate in industrial or harsh environments. It is ideal for motion detection applications including vehicle sensing, access control and warning indication.

Features

Flexible mounting

Mounting height from 78 in to 240 in (6.5 ft to 20 ft)

Adjustable for optimal detection

Ten sensor sensitivity settings can be applied to optimize detection

Weather resistant

IP64 rated enclosure for industrial and harsh environments

Customizable settings

Immunity settings can be adjusted to reduce unwanted detections caused by rain, snow and header vibrations

Table of specifications

Technology
Transmitter Frequency
Transmitter Radiated Power
Transmitter Power Density

Microwave Doppler Radar
24.150 GHz
< 20 dBm EIRP
< 5 mW / cm2



Detection Mode

Motion



Tilt Angle

0° – 90° vertical;
–120° – 120° lateral



Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power

Relay (free of potential change-over contact)
42 VAC – 60 VDC
1 A (resistive)
30 W (DC) / 60 VA (AC)



Minimum Detection Speed

2 in / s (measured in the sensor axis)



Frequency

50 – 60 Hz



Supply Voltage

12 – 24 VAC ±10%
12 – 24 VDC 30% / –10%



Maximum Power Consumption

< 2 W



Mounting Height

78 in – 240 in (6.5 ft – 20 ft)



Dimensions

2.25 in (W) × 5.51 in (H) × 2.17 in (D)



Material

ABS



Color

Black



Weight

5.8 oz



Cable Length

360 in (30 ft)



Temperature Range

–22 ºF – 140 ºF



Degree of Protection

IP64



Norm Conformance

R&TTE 1999/5/EC; EMC 2004/108/EC


Versions
  • sparrow-vertical
    10SPARROW

    Variable mount industrial motion sensor

Accessories
Downloads
Frequently asked questions

How high can I mount the SPARROW?

6′ 6″ to 20′



Can I set the SPARROW to not detect people?

No. You must upgrade to the FALCON.



What is the cable length for the SPARROW?

30′



Can the SPARROW be mounted on the ceiling?

The SPARROW can be ceiling-mounted or wall-mounted.



Why does the SPARROW LED rapid-blink blue after unlocking?

An access code has been entered. If you don’t know the access code, cycle the power and push UNLOCK > LOCK > 0000 to reset.



What is the function of the DIP switch?

Boost function – to be utilized if mounting above 14′ 6″.



Is the SPARROW NEMA 4 rated?

No, but it is IP64 rated (protected against dust intrusion and splashing water). Refer to the FALCON for a comparable NEMA 4 rated product.



What can be adjusted using the push buttons?

1) Increase or decrease field size
2) Factory reset



What are the detection modes?

BI = two traffic
UNI = one way towards sensor
UNI AWAY = one way moving away from sensor



What color wires are used for power?

Brown and green in terminals 1 and 2.
