Emergency Add-On Kit

FOR SINGLE OCCUPANCY RESTROOMS

Description

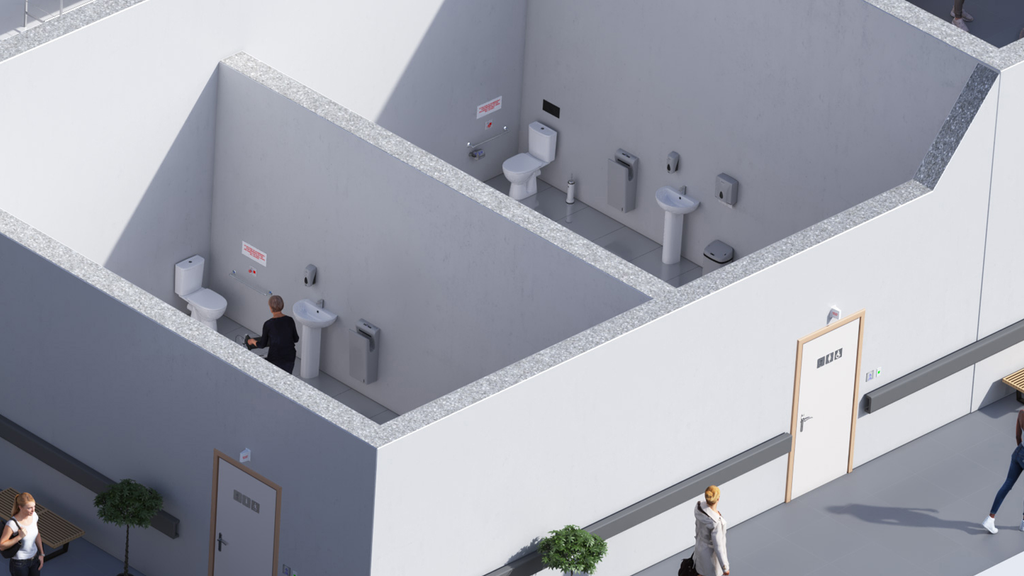

BEA’s Emergency Add-On Kit is designed to be used in single occupancy restrooms where someone may require emergency assistance.

It is can be used in conjunction with BEA’s Restroom Kit or as a standalone solution. It is designed to meet building codes requiring an emergency request system.

Features

Highly visible assistance required signal

“ASSISTANCE REQUIRED” signal (LED + sounder) for outside signaling

Easy to use/access emergency button

“PUSH FOR EMERGENCY ASSISTANCE” button + indicator (LED + selectable sounder) combined unit for ease of installation

Sign in English or French

Double-sided French / English emergency signage

Table of specifications

10ARS
Lamp Voltage Rating	28 VAC / VDC
Sounder Voltage Rating	16 – 25 VAC / VDC
Sounder Current Rating	15 mA
Lamps	Miniature bayonet type (#313)
Mounting	Fits standard single-gang
Sounder & Lamp Terminal	2 pigtail wires (each)
Material	Stainless steel & Polycarbonate
Dimensions Single Gang Faceplate White Lens (B-31695)	2.75 in (W) × 4.5 in (H) 2.25 in (W) × 4 in (H) × 3.125 in (D)

10EBUTTONCOMBO
Voltage	12 – 24 VAC / VDC ±10%
Indication	Audible buzzer (selectable on/off) and visual LED
Text Inserts	10
Button	E-stop button Push On / Pull Off
Material	Stainless steel & Polycarbonate
Accessory	Rubber weather gasket included
Certifications	FCC

70.5675
Material	Polystyrene
Dimensions	12 in (W) × 5.5 in (H)
Language	Double-sided French / English
