FLY KIT

COMPACT PASSIVE INFRARED REQUEST-TO-EXIT SENSOR
fly-kit

Description

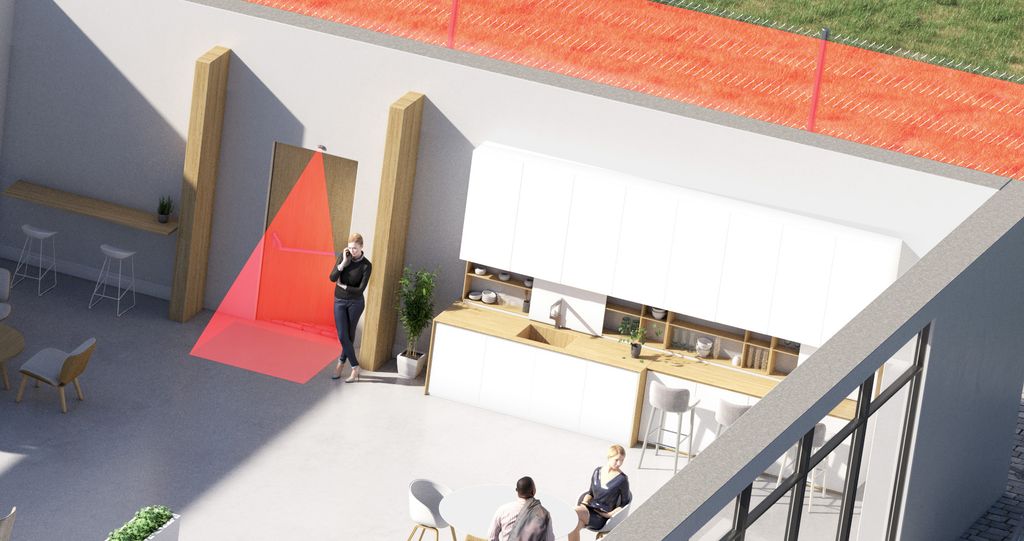

BEA’s FLY KIT is the industry’s most compact passive infrared (PIR) sensor, ideal for request to exit (REX) applications.

This low-cost, versatile sensor can be surface mounted above any door or recessed in the ceiling. Its flexibility and low profile design make it an effective sensor for managing building security and traffic flow.

Features

Precise infrared detection

Sensing field adjustment masks provide accurate detection zones (2 included)

Adjustable access settings

Extended Relay Time (ERT) version is available for hold times of 15 or 30 seconds

Customizable

DIP switches for user-defined settings

Low profile design

Compact, aesthetically pleasing design; packages include both ceiling and surface mount adapters.

Table of specifications

Technology

Passive Infrared with microprocessor



Mounting Height
Recommended
Maximum


6 ½ – 8’
10’



Mounting Angles

0 – 180°



Power Supply

12 – 24 VAC; ±10% (50 / 60 Hz)
12 – 24 VDC; −10% / 30%



Current Consumption

< 10 mA (20 mA if the relay output is activated)



Contact Rating

1 A / 75 VDC or 50 VAC potential free contact NO / NC



Optical Characteristics

Passive infrared with four elements
15 Fresnel lenses with full independent masking possibilities



Warm-up Time

10 s



Response Time
Maximum


200 ms



Relay Hold Time
Standard Fly
Fly Extended Relay Time


0.5 or 2 s
15 or 30 s



Operating Temperature

-22 – 140 °F (-30 – 55 °C)



Cable

9’ 4-conductor cable with 5-pin connector



Weight

1.4 oz (40 g)



Sensor Dimensions

4” (W) × 1 45” (H) × 1” (D)



Housing Color

Black


Versions
  • fly-kit
    10FLYKITB

    Fly Kit, Black

  • fly-kit
    10FLYKITBERT

    Fly Kit, extended relay time, black

  • standard-fly
    10FLYBLK

    Fly sensor

  • standard-fly
    10FLYBLKERT

    Fly sensor, extended relay time

  • 10FSABLK

    Fly surface mount adapter

  • fly-ceiling-adapter-2
    10FCABLK

    Fly ceiling mount adapter
