Description

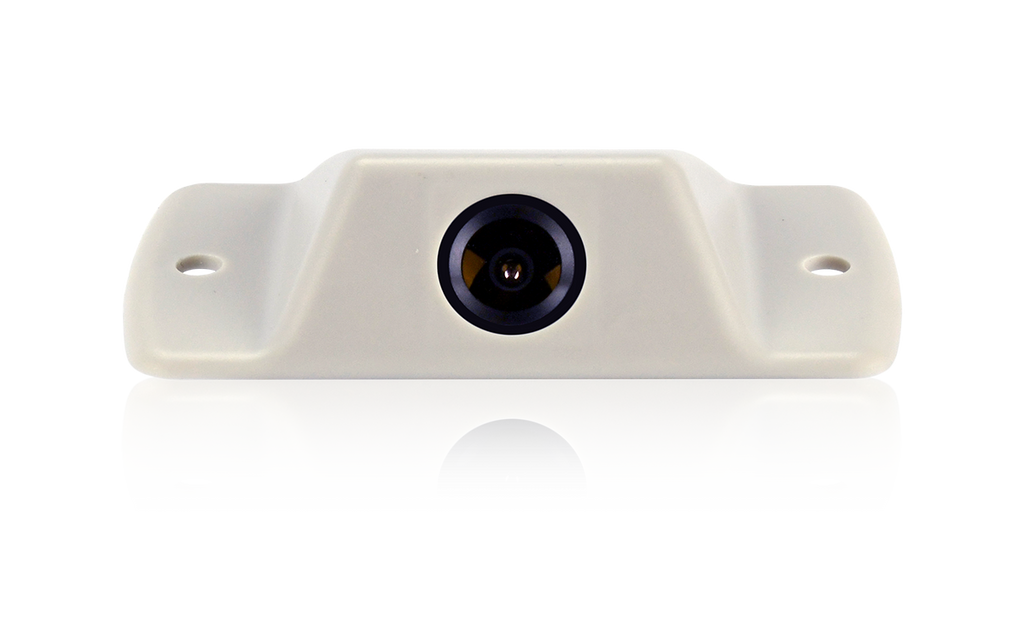

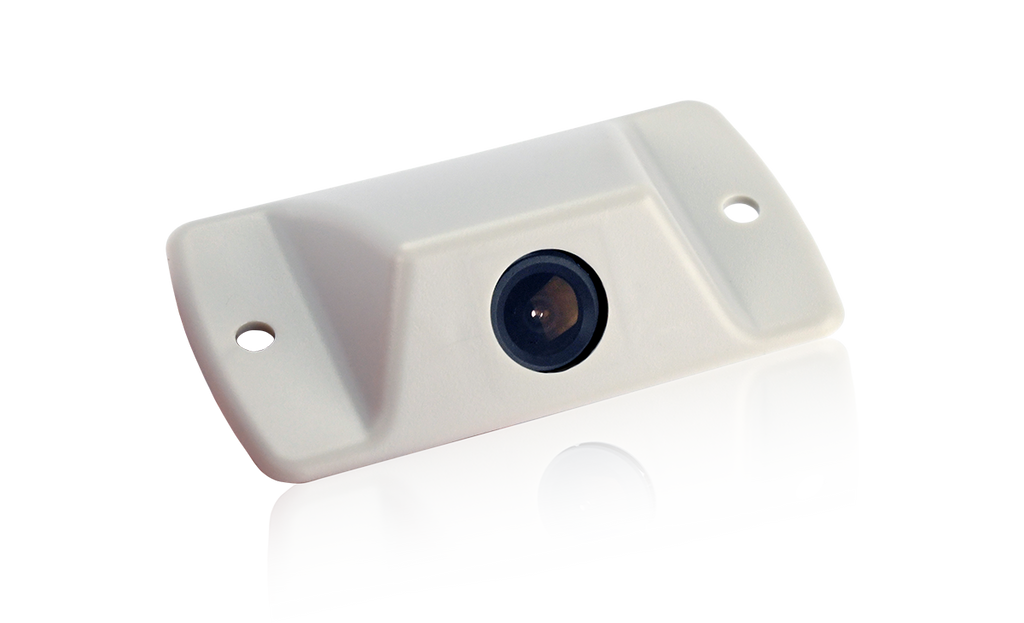

BEA’s JAMB CAM is an enhanced definition color video camera designed to monitor the usage and traffic flow of pedestrian doors.
Its sleek, low profile design provides a discreet method for improving loss prevention and limiting liability.
The RCA video output can be seamlessly integrated into most existing video surveillance systems.
Features
High resolution video
Full color video with resolution of 480 × 720 (480p)
Visual coverage of door threshold
Wide angle lens for complete view of door and traffic flow
Easy to install
Integrated voltage regulator for installation convenience
Low profile camera
Low profile design minimizes accidental damage from shopping carts and other errant objects
- Table of specifications
-
Supply Voltage
6.6 – 36 VDC; ±10%
6.0 – 28 VAC; ±10%Operating Temperature
-22 – 140 °F (RH 95% max)
(-30 – 60 °C)Video Output
1.0 (Vp-p) / 75 Ω
Image Sensor
CMOS
Horizontal Resolution
480 TVL
NTSC Output
720 (H) × 480 (W)
Sync System
Inter-Sync
Frame Rate
30 fps
Minimum Illumination
0.01 LUX
AE Control
Auto
Gain Control
Auto
Electronic Shutter
1 s ~ 1/10,000 s
S/N Ratio
> 50 dB
AWB
Auto
Dimensions
1 ¾” (W) × 3” (H) × ¾” (D)
- Versions
-
10JAMBCAMJamb mounted color video camera
- Accessories
-
Power SuppliesPower supply solutions to meet the needs of most applications.
- Downloads
-
Application Notes
-
Cut Sheets
-
User Guides
- Download the package
Related products
-

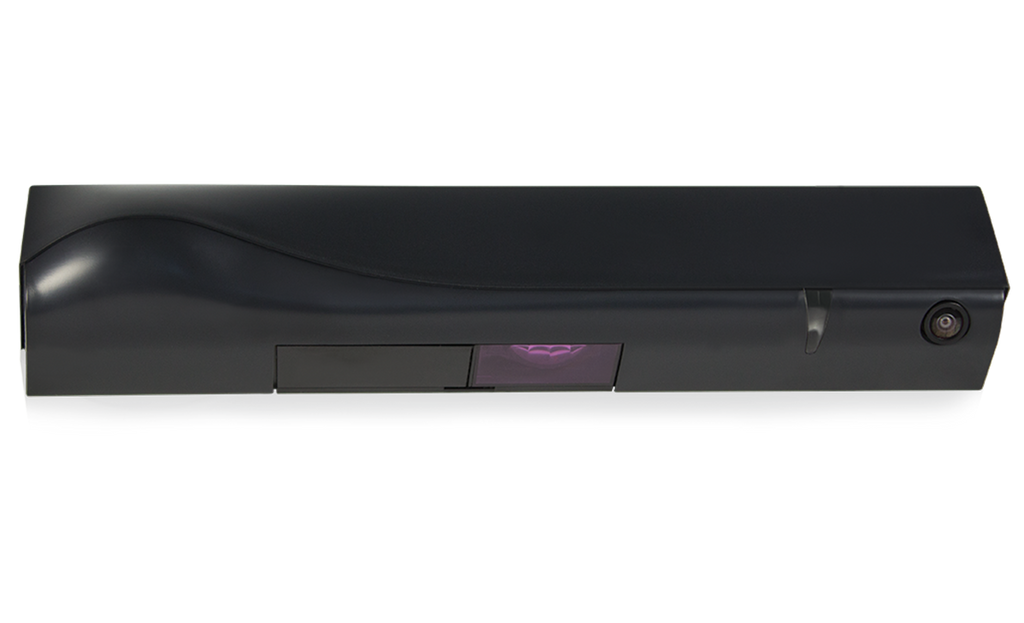

IXIO-DT1VLearn more
