ELECTRIC STRIKES

RIM EXIT & UNIVERSAL CYLINDRICAL STRIKES FOR ACCESS CONTROL

Description

BEA’s ELECTRIC STRIKE portfolio includes RIM EXIT and UNIVERSAL CYLINDRICAL STRIKES for access control applications.

The RIM EXIT STRIKE is designed specifically for rim exit devices. This strike is completely surface mounted, which eliminates the need to cut into the door frame.

The UNIVERSAL CYLINDRICAL STRIKE provides controlled access and security for egress and ingress applications where code compliance and safety are paramount. This strike is UL294 and UL1034 listed.

Features

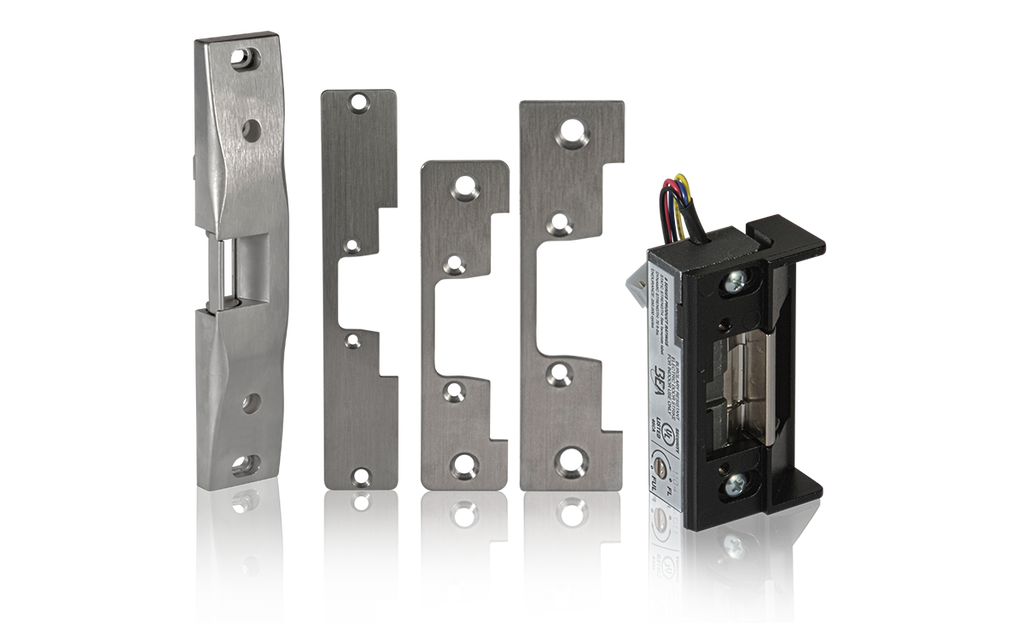

Modular Faceplate Options

Three modular faceplates for the most common door types: hollow metal, aluminum and wood

Standards Compliant

UL 294 & UL1034 listed Universal Cylindrical and Rim Exit strikes

Durable

UL tested to 250,000 cycles, factory tested to 1,000,000 cycles

UL Listed

Universal Cylindrical strikes are rated to 1000 lbs static / 70 lbs dynamic (50 lbs dynamic for CUV model). The Rim Exit strikes are rated to 1500 lbs static / 70 dynamic.

Table of specifications

10STRIKERE



Mode

Fail Safe



Voltage

12 VAC / VDC
24 VAC / VDC
11 - 16 VAC



Duty

Intermittent, Continuous
Intermittent, Continuous
Intermittent, Intermittent



Amps †

0.30, 0.50
0.64, 0.24
0.35, 0.50



Sound

Buzz, Silent
Buzz, Silent
Buzz, Buzz



Static / Dynamic Strength

1500 lbs / 70 lbs



Endurance

250,000 cycles (UL tested)



Latch Throw

¾”



Standards Compliance

UL 294, UL 1034, UL & cUL listed







10STRIKECU



Mode

Fail Safe, Fail Secure



Voltage

12 VDC
24 VDC
12 – 24 VAC



Duty

Continuous
Continuous
Intermittent



Amps †

0.375
0.190
0.280 – 0.565



Sound

Silent
Silent
Buzz



Amps †

0.375
0.190
0.280 – 0.565



Static / Dynamic Strength

1000 lbs / 70 lbs



Endurance

250,000 cycles (UL tested)



Latch Throw

½” or ⅝”



Standards Compliance

UL 294, UL 1034, UL & cUL listed







10STRIKEREV12 / 10STRIKEREV34



Mode

Fail Safe, Fail Secure



Voltage

12 VDC
24 VDC



Duty

Continuous
Continuous



Amps †

0.540
0.270



Sound

Silent
Silent



Static / Dynamic Strength

1500 lbs / 70 lbs



Endurance

250,000 cycles (UL tested) / 1,000,000 cycles (factory tested)



Latch Throw

½” or ¾”



Standards Compliance

UL 294, UL 1034, UL listed







10STRIKECUV



Mode

Fail Safe, Fail Secure



Voltage

12 VDC
24 VDC



Duty

Continuous
Continuous



Amps †

0.300
0.150



Sound

Silent
Silent



Static / Dynamic Strength

1000 lbs / 70 lbs



Endurance

250,000 cycles (UL tested) / 1,000,000 cycles (factory tested)



Latch Throw

9⁄16; (15 mm max)



Standards Compliance

UL 294, UL 1034, UL listed



Fail Safe – Lock or locking device that remains unlocked on loss of power
Fail Secure – Lock or locking device that remains locked on loss of power.
Also known as Non-Fail Safe (NFS)
Intermittent Duty – Energized less than 1 minute with duty ratio 1:5
Continuous Duty – Energized 1 minute or more
† Amp ratings are based on maximum current draw at 50 ºF and include initial power-up current
‡ Nominal resistance at 77 ºF ±7% tolerance

Versions
  • 10STRIKERE

    UL & cUL Listed Rim Exit Electric Strike

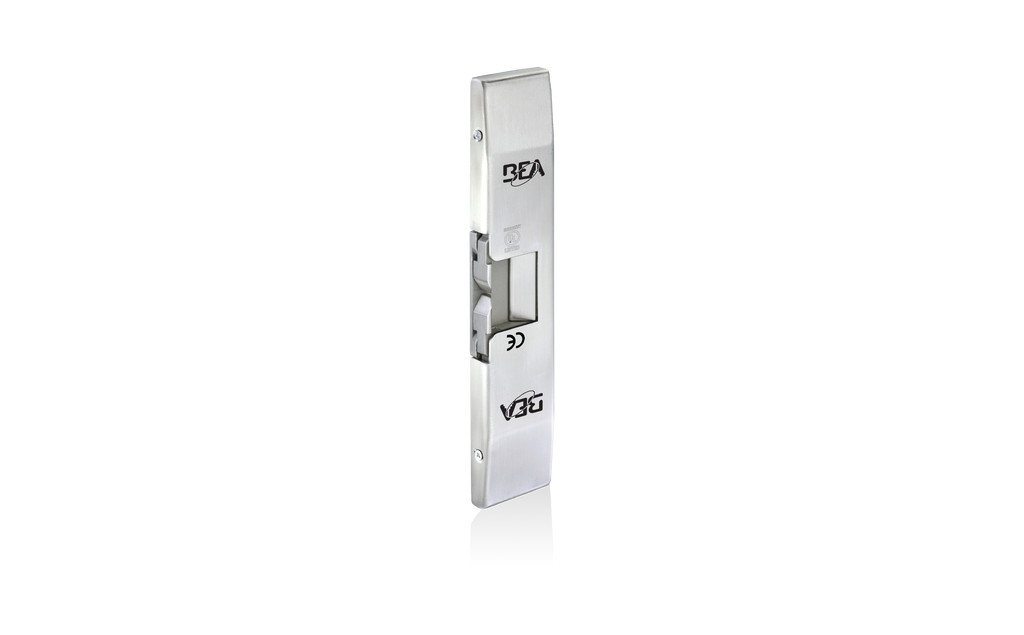

  • 10STRIKEREV12

    UL Listed ½” Rim Exit Electric Strike

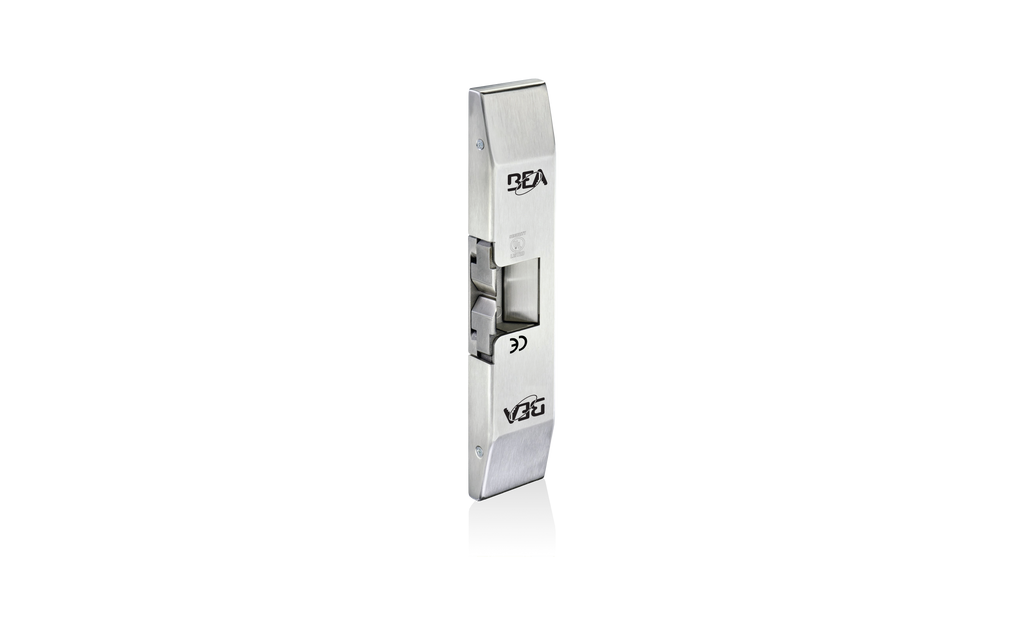

  • 10STRIKEREV34

    UL Listed ¾” Rim Exit Electric Strike

  • universial-cylindrical-strike
    10STRIKECU

    UL & cUL Listed Universal Cylindrical Electric Strike

  • 10STRIKECUV

    UL Listed Universal Cylindrical Electric Strike

Downloads
Frequently asked questions

Are ELECTRIC STRIKES UL294 listed?

Yes.



What types of face plates come with the CYLINDRICAL UNIVERSAL ELECTRIC STRIKE?

There are 3 face plates available for most door types: hollow metal, aluminum, and wood.



How deep of a latch throw will the CYLINDRICAL UNIVERSAL ELECTRIC STRIKE accommodate?

1/2 inch to 5/8 inch latch throw.



Is the CYLINDRICAL UNIVERSAL ELECTRIC STRIKE field selectable for fail safe/fail secure?

Yes.



Can I power ELECTRIC STRIKES with AC or DC, 12 or 24 volts?

Yes. There are two jumpers supplied.

  • 12 VDC and 12 to 24 VAC
  • 24 VDC



Why does the ELECTRIC STRIKE release, but does not buzz?

Replace the power supply with a correct voltage AC power supply and the 12 V connector. If this cannot be done, the PIEZO buzzer can be installed.



Why does the ELECTRIC STRIKE make a buzzing sound?

This is a voltage issue. The ELECTRIC STRIKE requires a 12 to 24 VDC power supply. If using an AC power supply, ensure UL294 or as local codes mandate; otherwise, a rectifier may be installed.



Is the RIM EXIT ELECTRIC STRIKE rated for continuous duty?

Yes, but only when powered by 12 or 24 VDC.



What is “continuous duty”?

Powered for longer than 1 minute at a time.



What is the function of the 2 locking screws on the RIM EXIT ELECTRIC STRIKE?

The locking screws lock the device in place after all adjustments have been made and proper operation has been verified.
